Torque Specifications

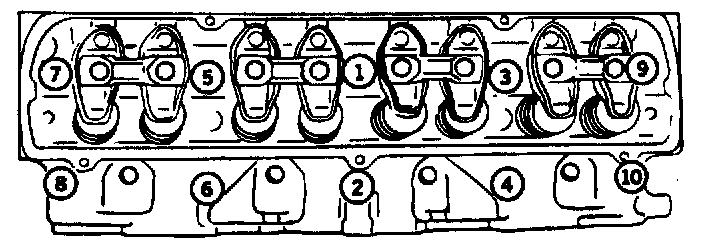

Cylinder Head Torque Sequence:

Cylinder Head Bolts 54 Nm (4O ft lb)

Plus Rotate (Position 1-7 & 9) 120°

Plus Rotate (Position 8 & 10) 95°

Note: Clean and dip entire bolt in (5W-30) engine oil before tightening to obtain a correct clamp load
