Manual Mode

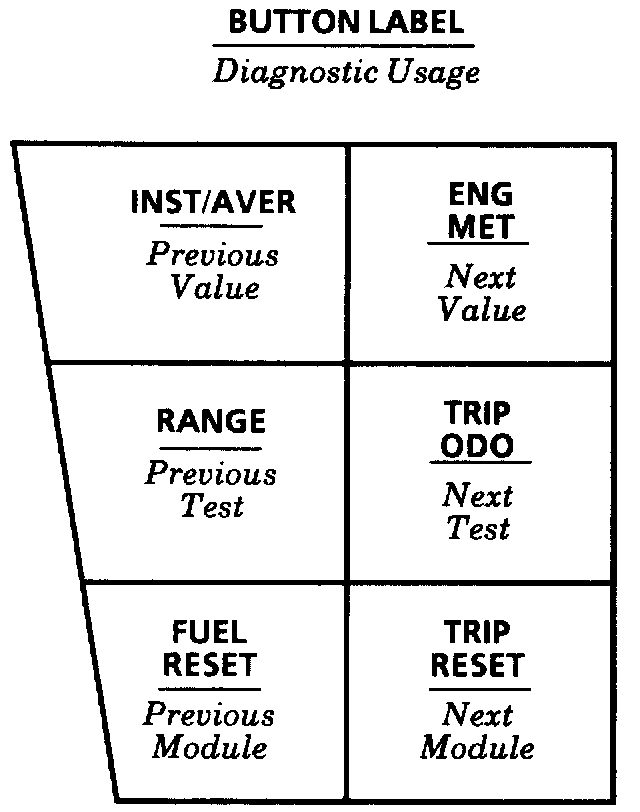

Driver Information Center Buttons:

The Manual Mode can be entered as described previously, or will automatically be entered after the the automatic code display sequence is complete.

When Manual Mode is entered, the speedometer will be blank, and the trip monitor will display "1.0", indicating that module "1" (the CCM) is ready for further instructions. The buttons on the DIC are used to control to other systems and options as illustrated.

The indicator "---" will be displayed on the speedometer if the end or the beginning of a list of malfunction codes is reached (using the "Next Value" or "Previous Value" button). The "---" will also display if no codes are present for the module being checked.
