Home >> Chevrolet >> 1990 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Control Assembly, HVAC >> Electronically Controlled >> Part 2 of 2

Part 2 of 2

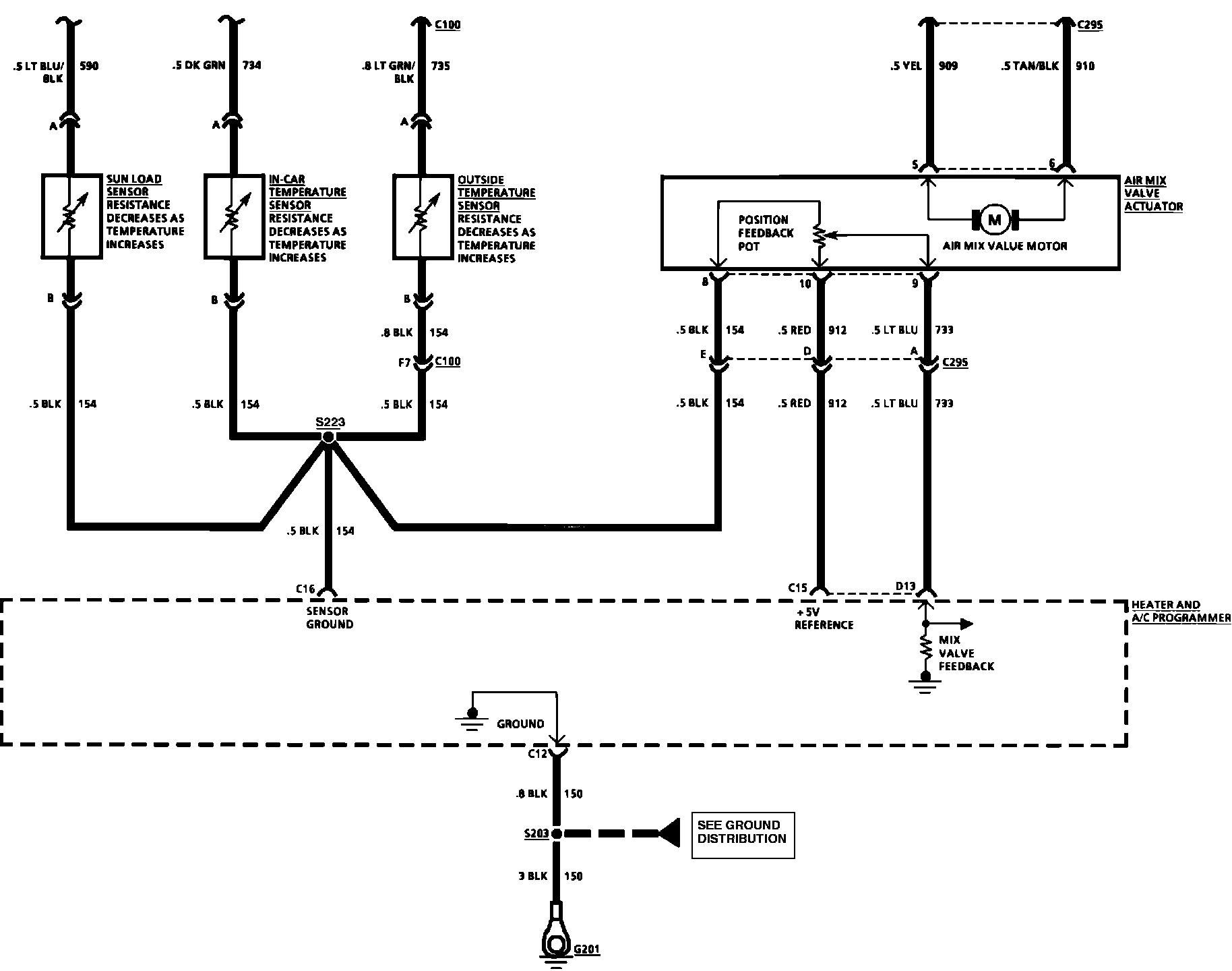

Air Conditioning, Temperature Controls (Electronic):
