Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Hazard
Hazard

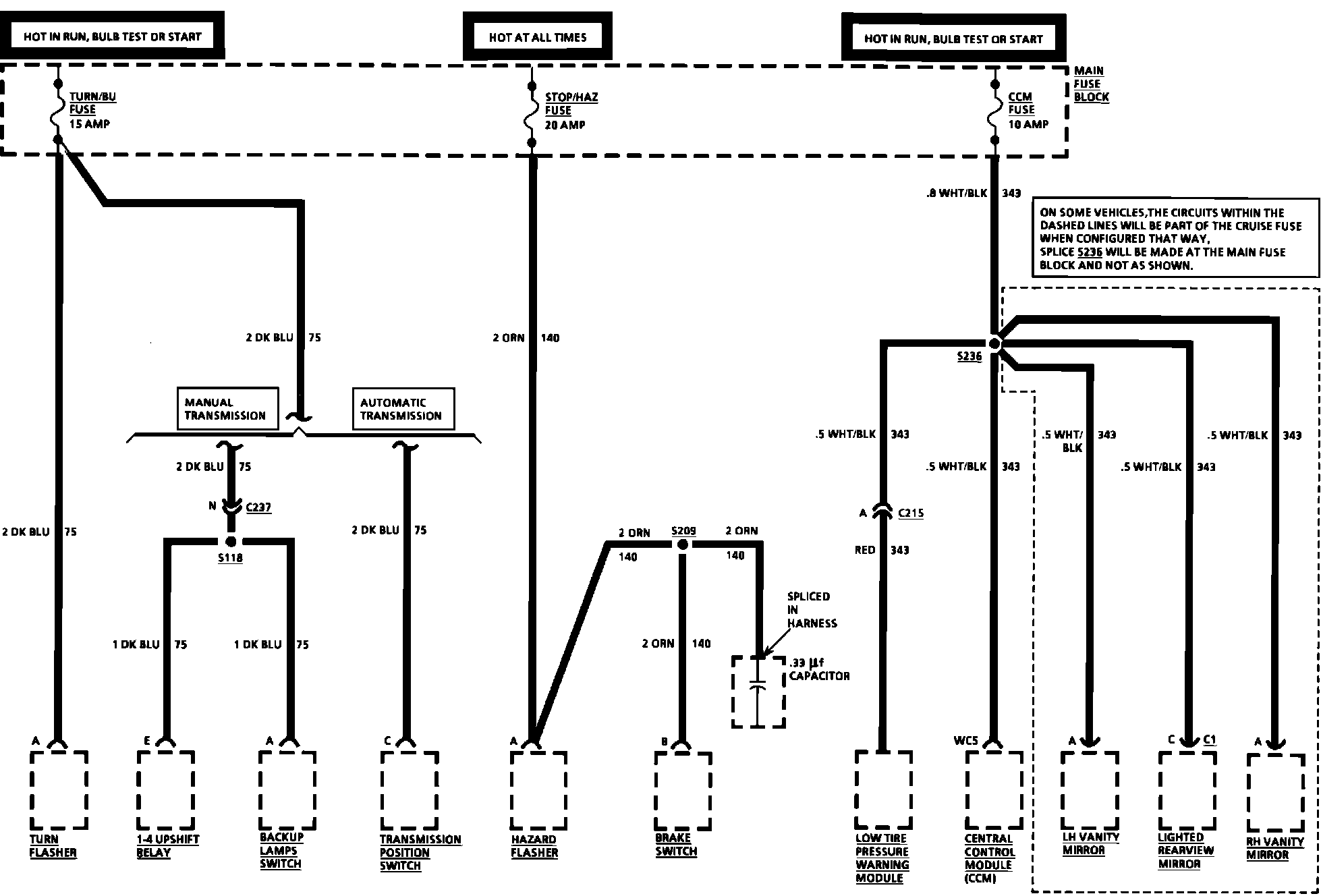

Fuse Block Details (CCM Fuse, Hazard/Stop Fuse & Turn/Back-Up Fuse):
