Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper
Wiper

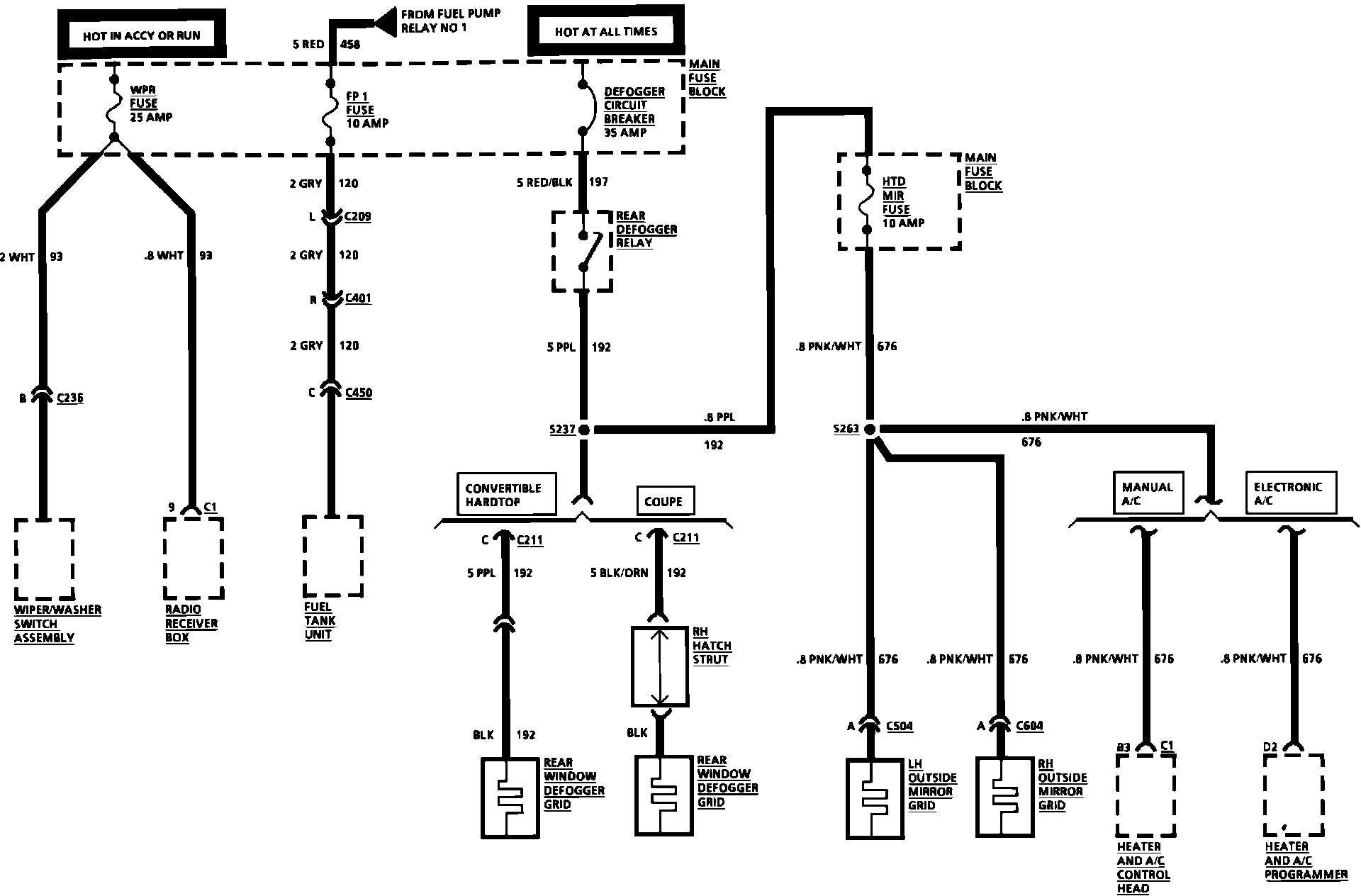

Fuse Block Details (Wiper Fuse, Fuel Pump 1 Fuse, Defogger Circuit Breaker & Heated Mirror Fuse):
