Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1990
>>
Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Power Seat Control Module
>>
Technical Service Bulletins
>>
Power Seats - Schematics and Diagnostics
>>

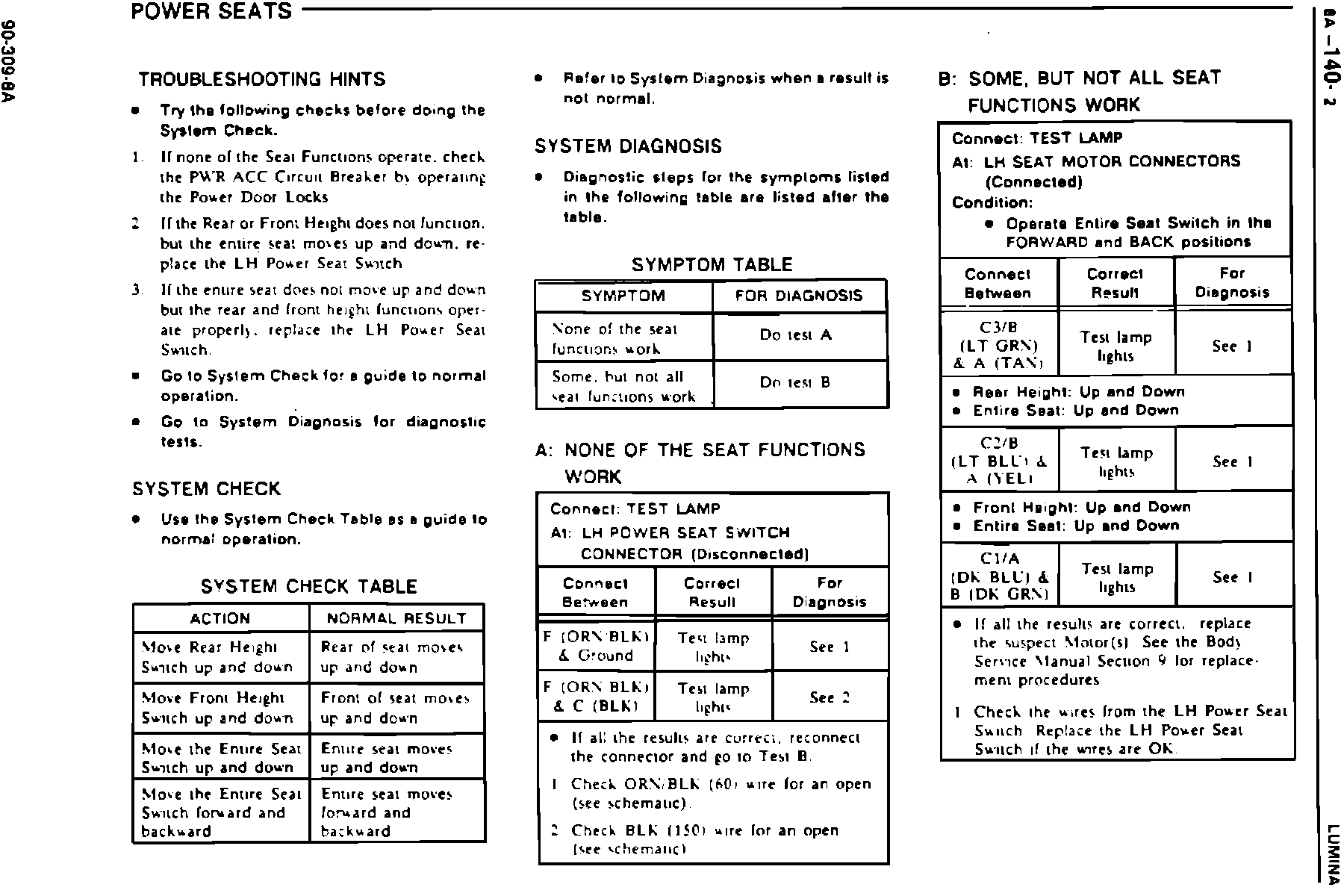

8A-140-2 Troubleshooting Hints
8A-140-2 Troubleshooting Hints
