Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1990
>>
Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Fuse 14
Fuse 14

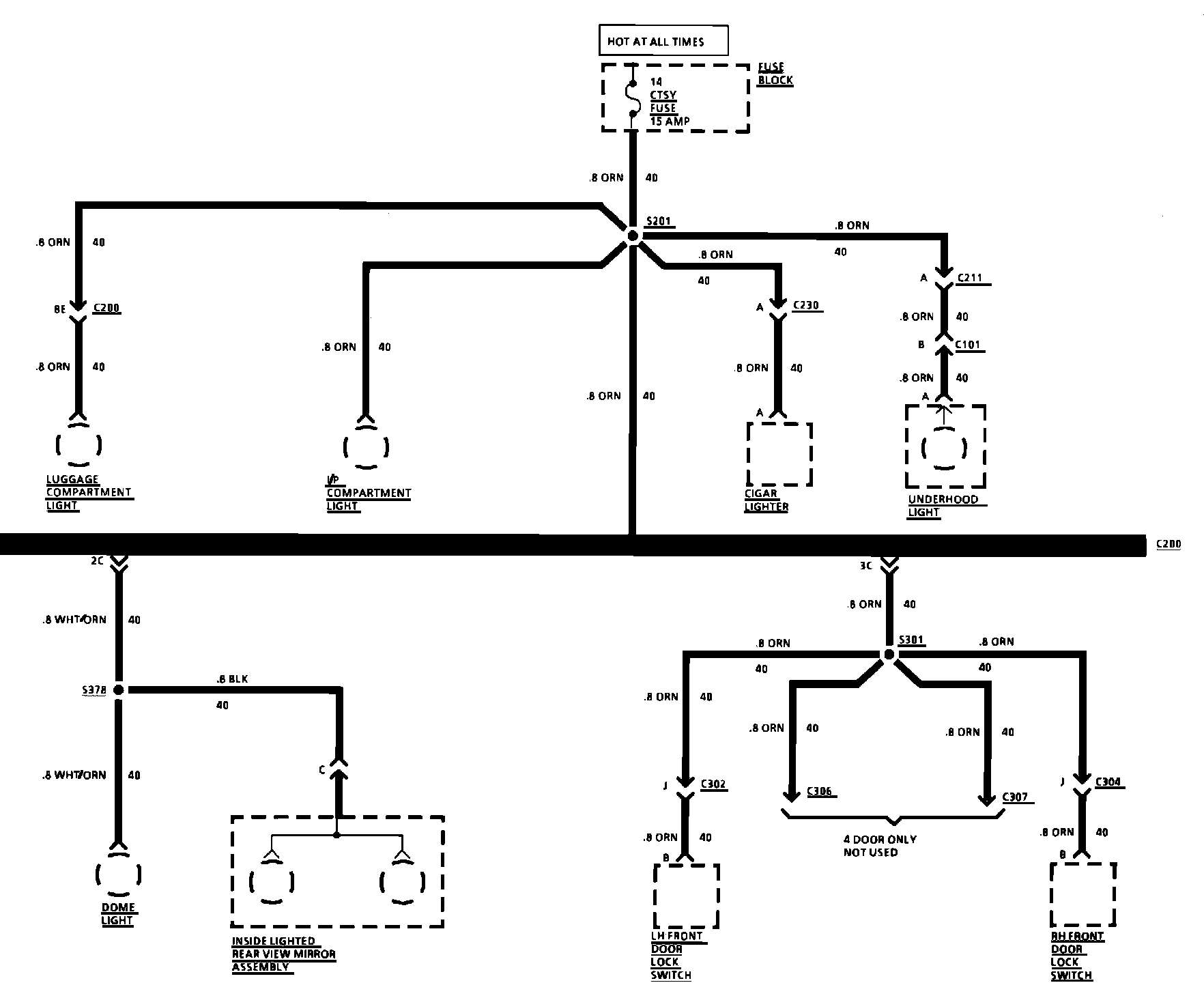

Fuse Block Details. Fuse 14:
