Alignment (Rear) - Revised Camber Specifications

9218chevy05

Number: 90-123-3A

Section: 3A

Date: December 1989

Corporate Bulletin No.: 933104


Subject:
REAR CAMBER ALIGNMENT SPECIFICATIONS


Model and Year:
1990 W CAR


TO: ALL CHEVROLET DEALERS

THIS BULLETIN CANCELS AND SUPERSEDES DEALER SERVICE BULLETIN NO. 90-58-3A. DATED SEPTEMBER 1989. THE TIRE SIZE AND HEIGHT HAS BEEN CORRECTED. ALL COPIES OF 90-58-3A SHOULD BE DISCARDED.

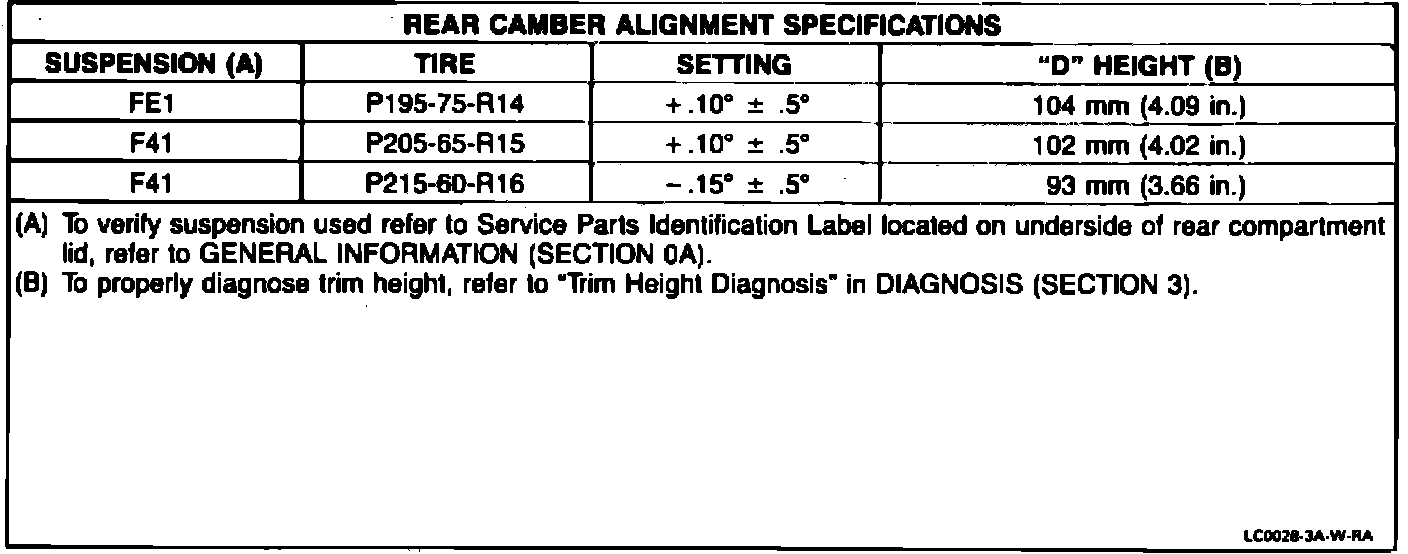

Use these revised rear camber alignment specifications when checking or setting rear wheel alignment instead of those shown in the 1990 Chevrolet Lumina Manual.
