Home
>>
Chevrolet
>>
1990
>>
Lumina V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Switches
>>
Back-Up Light Switch
Back-Up Light Switch

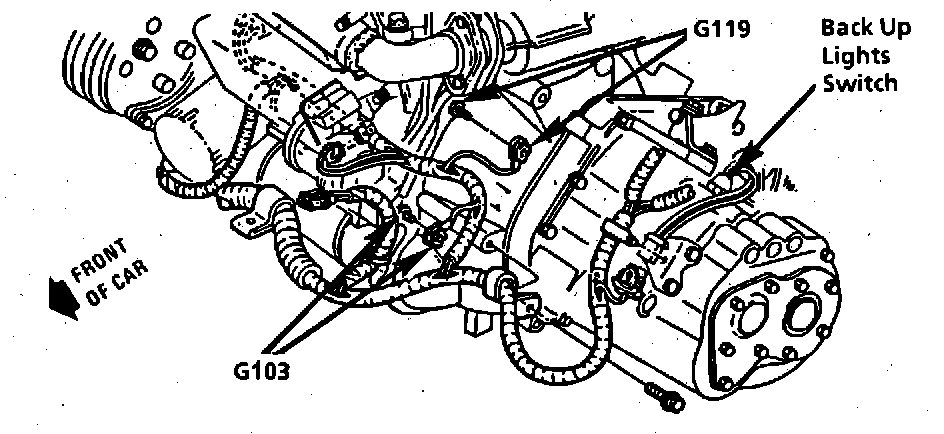

Back-Up Lights Switch.:
LH Side Of Engine
Applicable to: Lumina w/V6-192/3.1L
