Fuel Control & Fuel Injectors

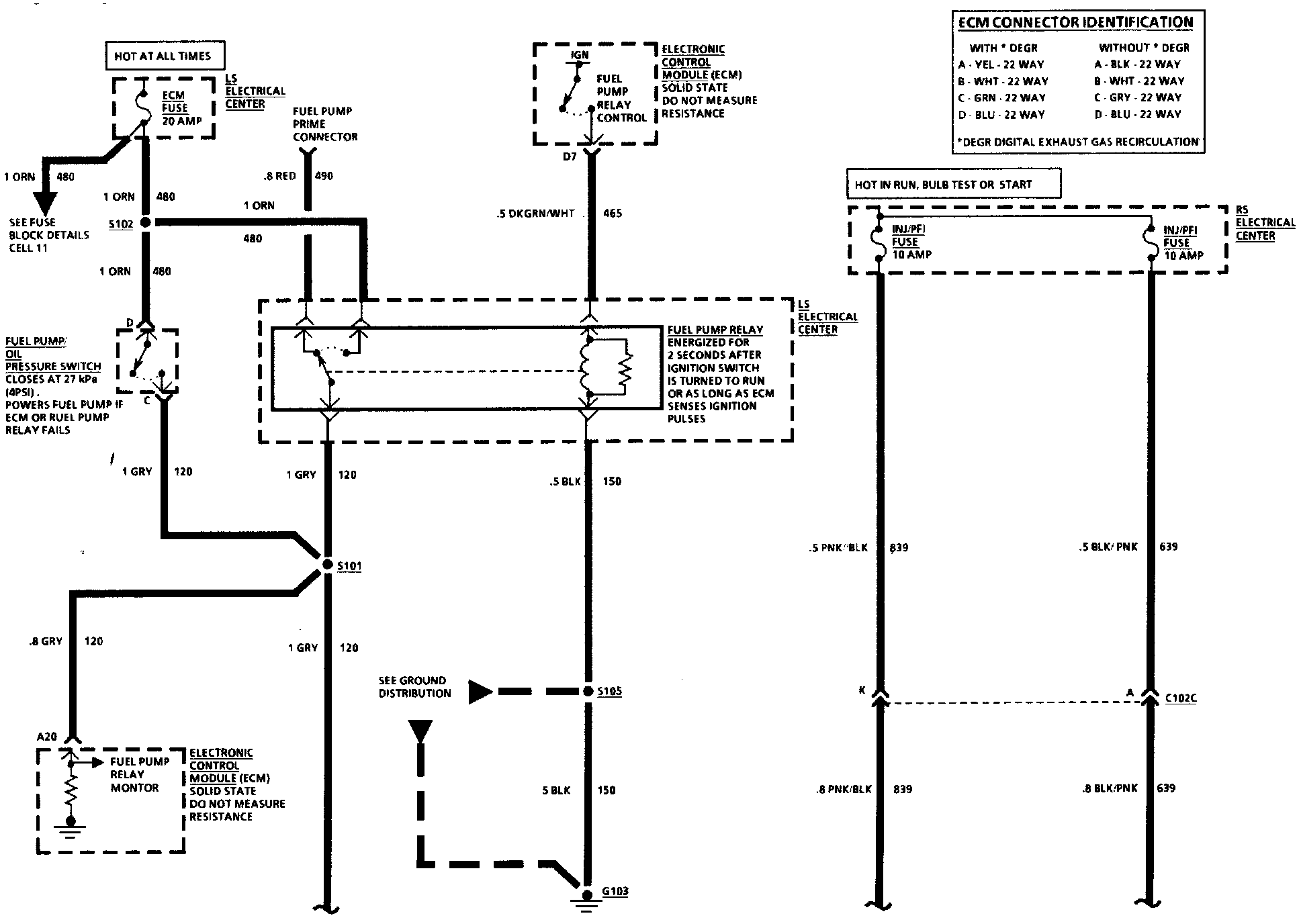

(Part 1 Of 2) Fuel Injector And Fuel Control:

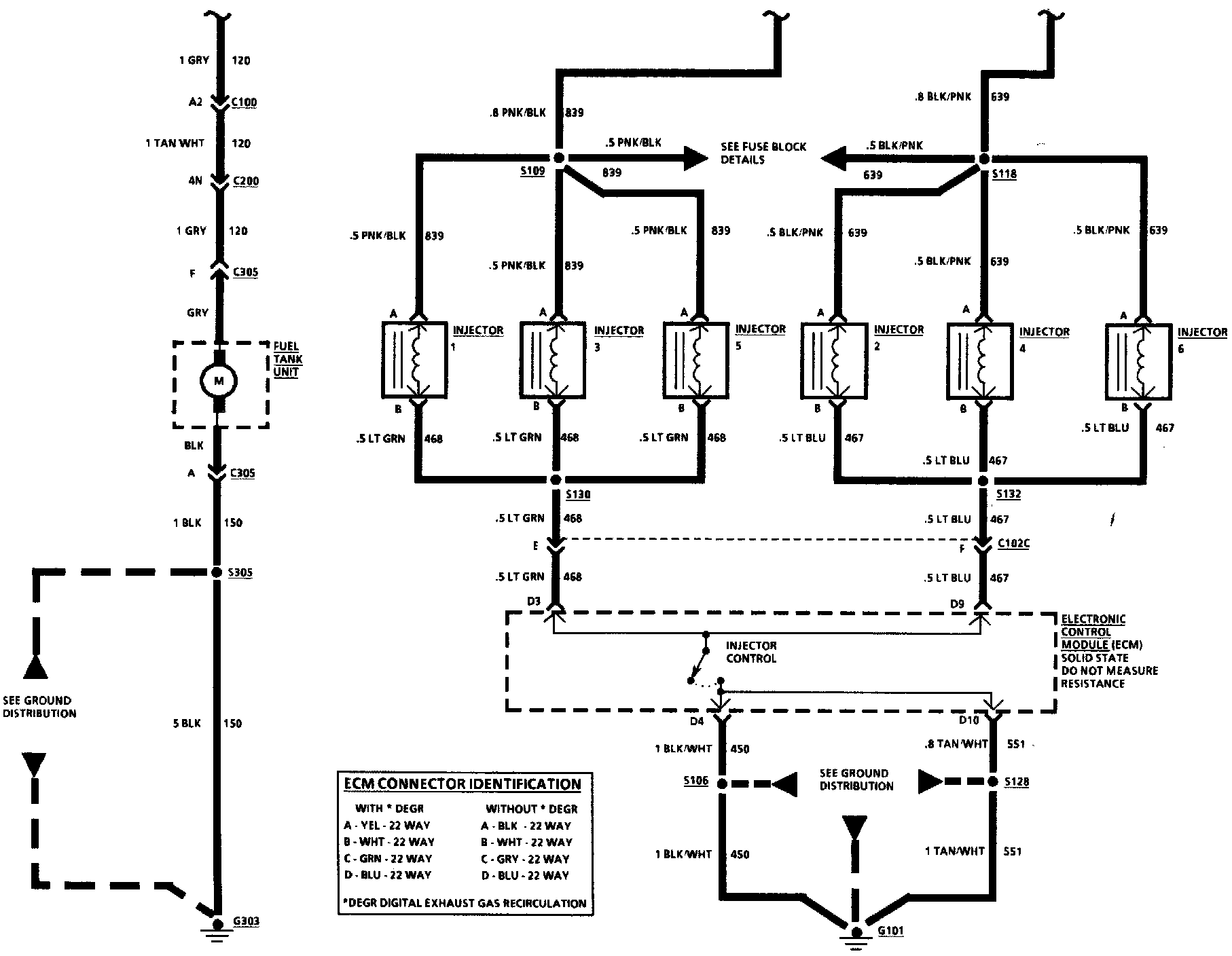

(Part 2 Of 2) Fuel Injector And Fuel Control:
