Power, Ground, Fuel Control & Injectors

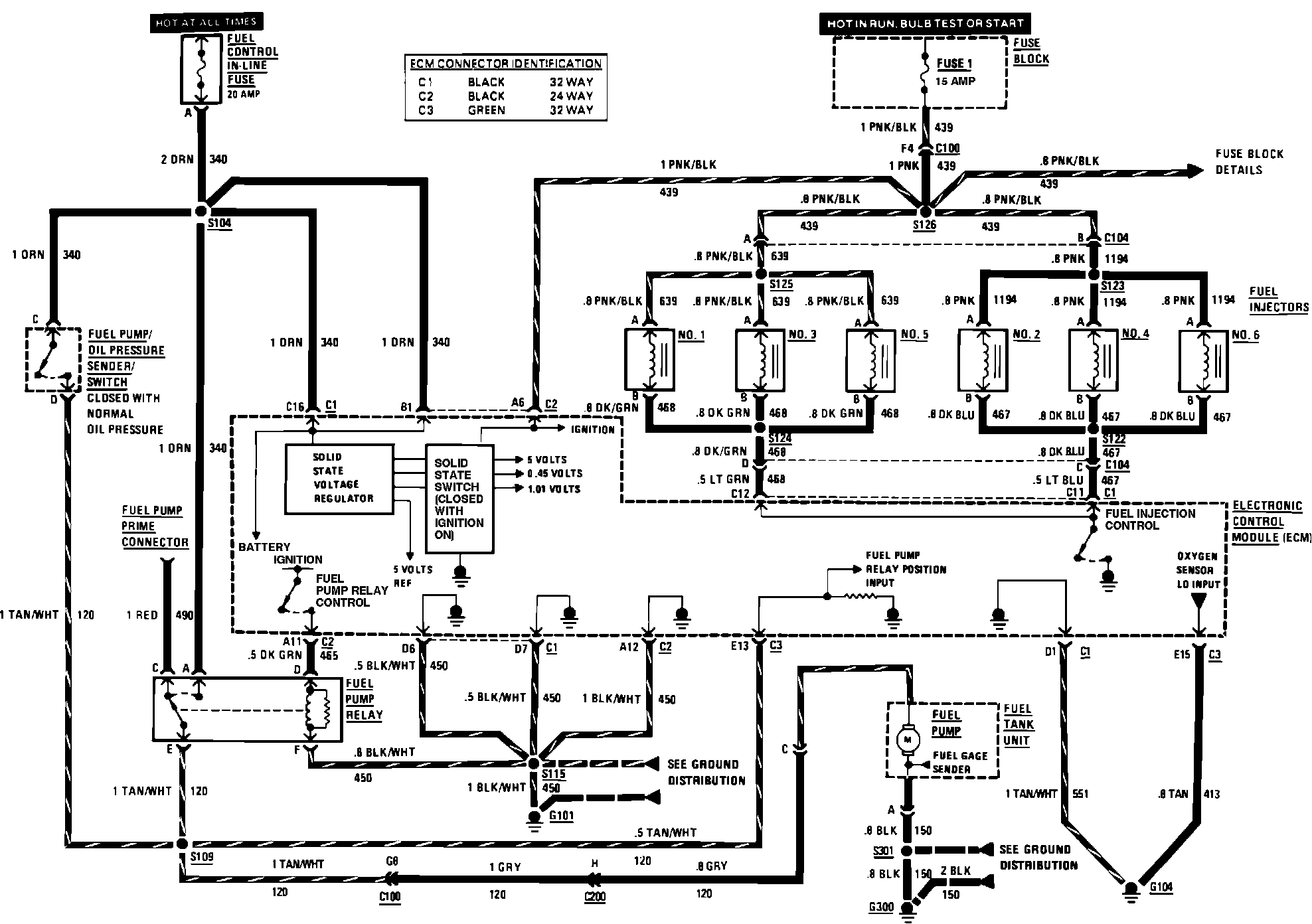

Multi-Port Fuel Injection: Power, Grounds, Fuel Control And Injectors:

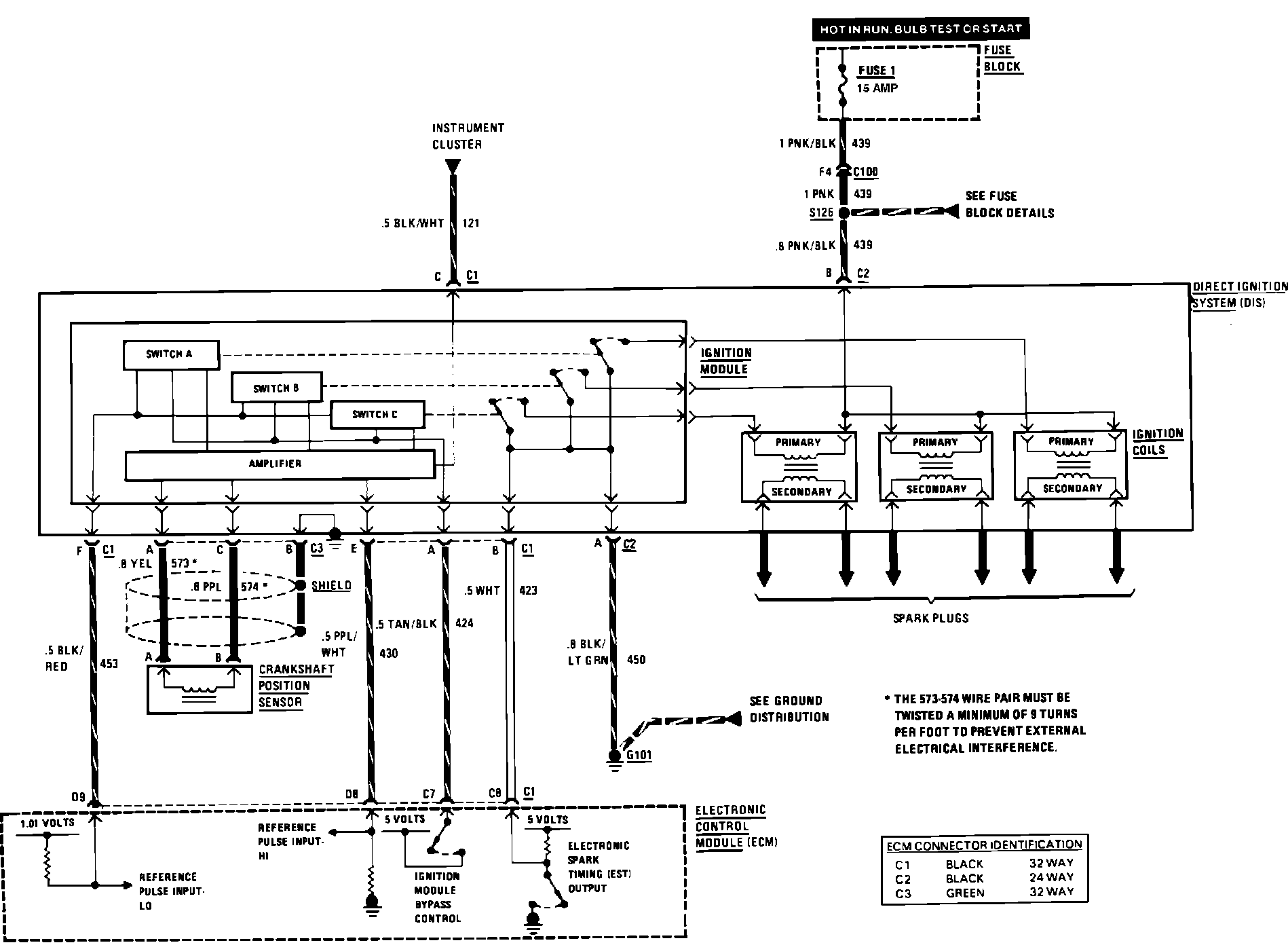

Multi-Port Fuel Injection: Ignition:
