Electronic Fuel Injection
Electronic Fuel Injection

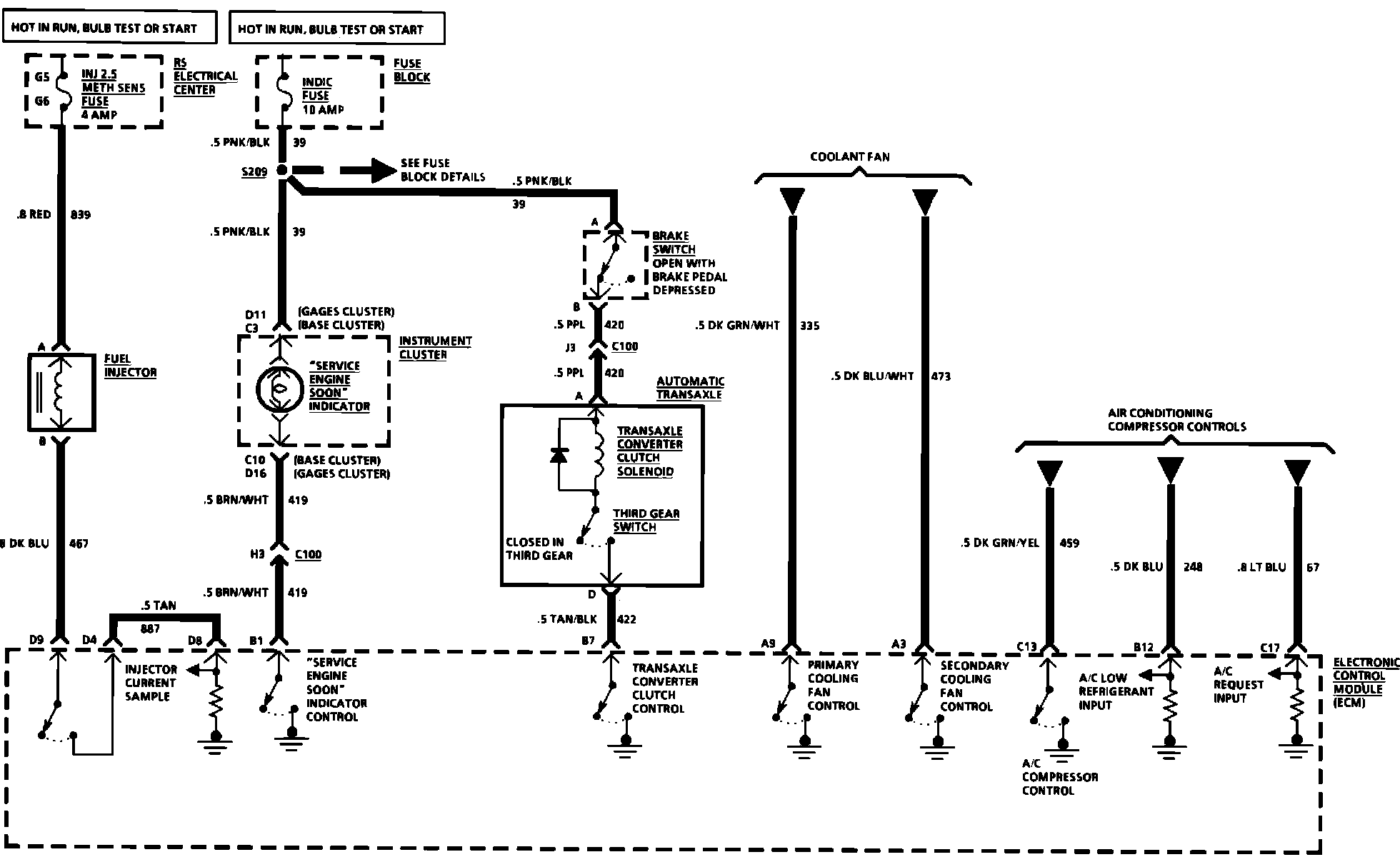

Electronic Fuel Injection. Idle Air Control, "Service Engine Soon Indicator: And Automatic Transaxle:
