Home >> Chevrolet >> 1992 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> A/C Fuse

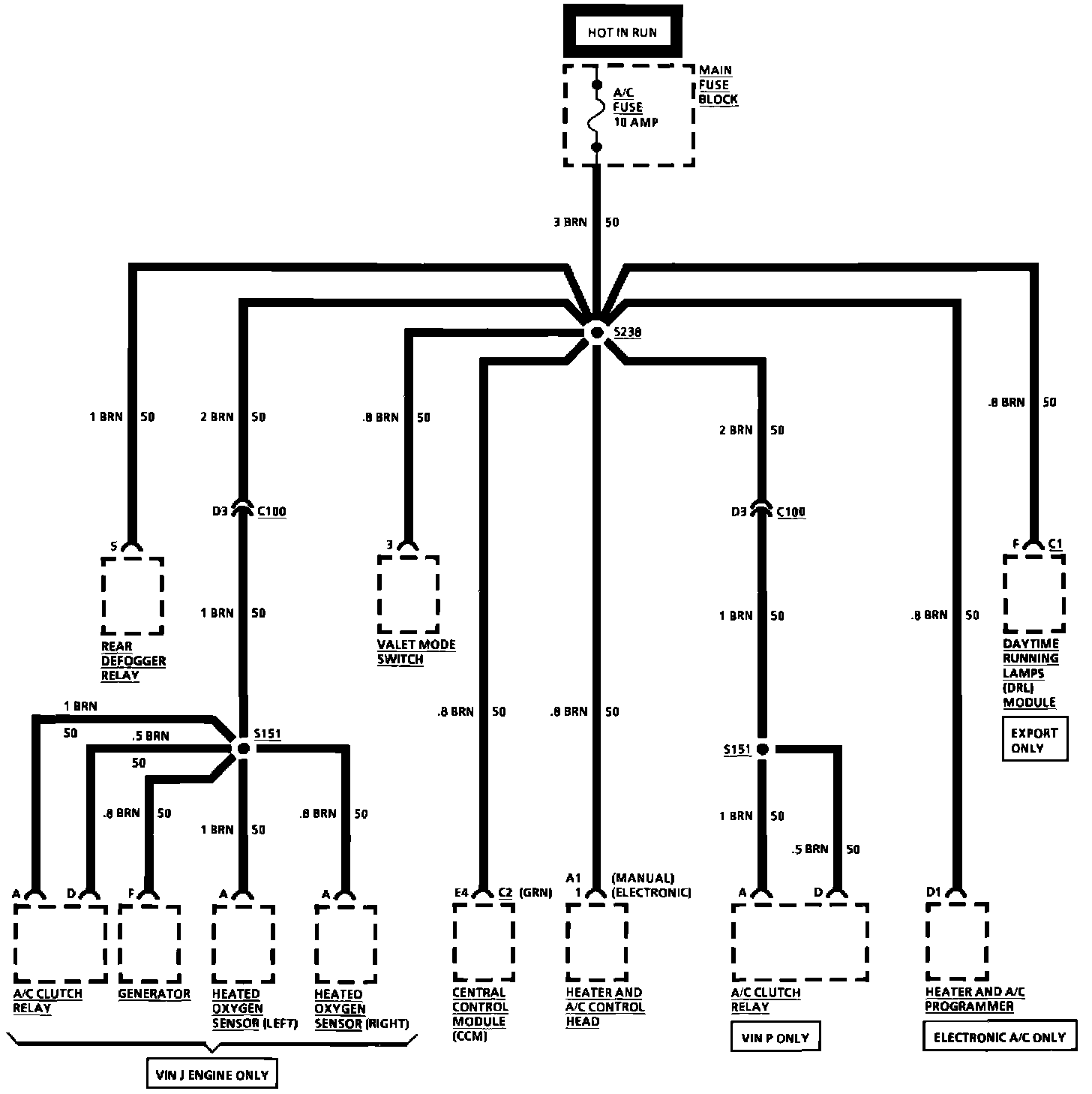

A/C Fuse

Fuse Block Details: A/C Fuse:
