Fuel Tank Unit: Locations

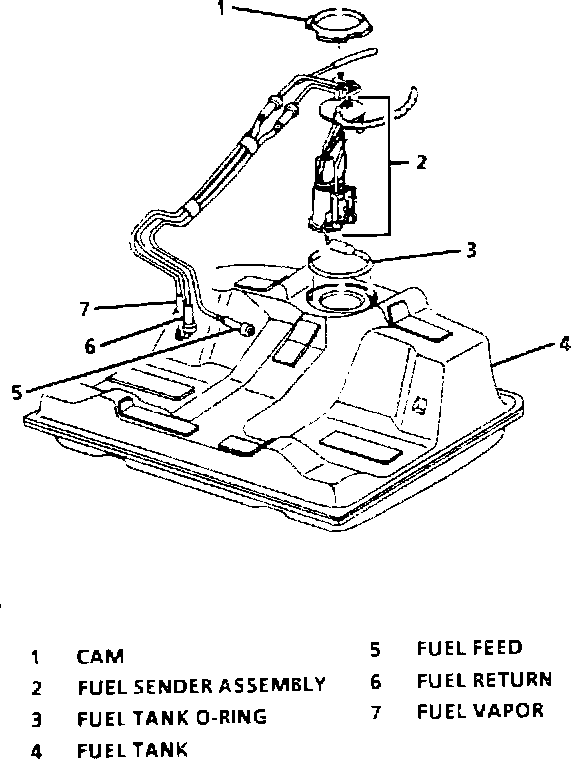

Fuel Tank And Hoses:



Fuel Pump/Fuel Gauge Sending Unit (typical):

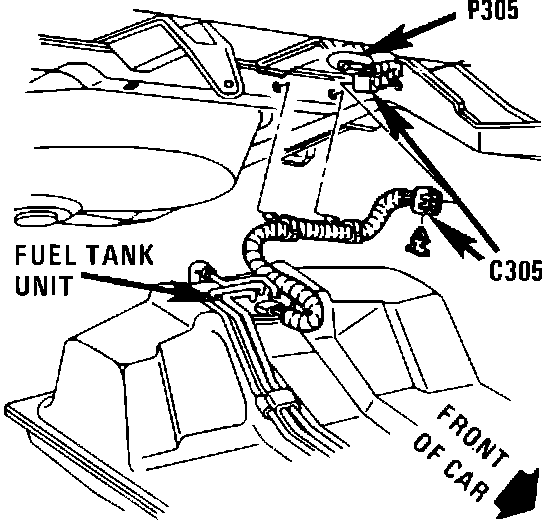

Rear Underside Of Car:
