S115

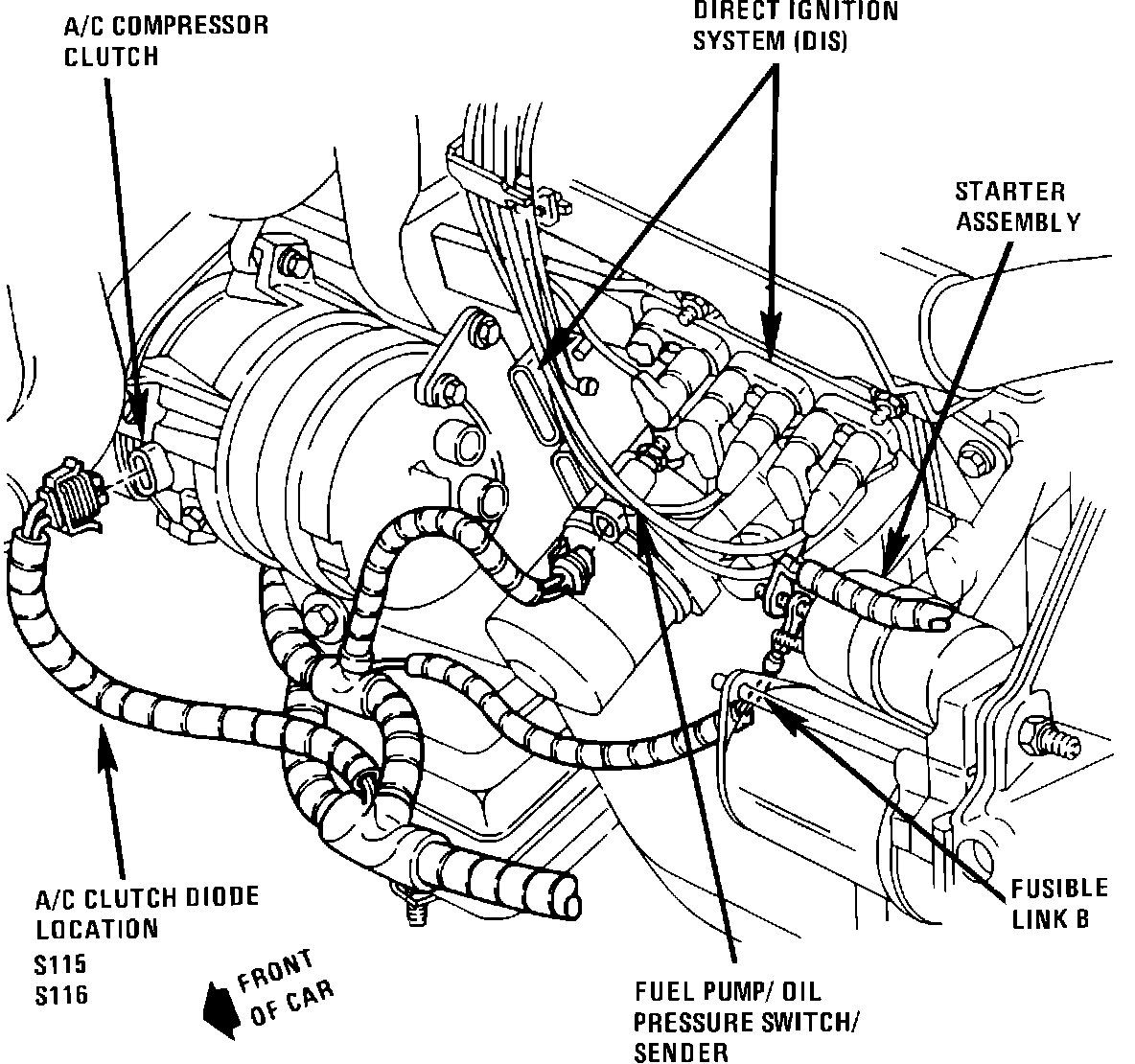

Front Of VIN X Engine (VIN T Similar):

Engine harness, approx. 21 cm from A/C Compressor Clutch
