Governor: Service and Repair

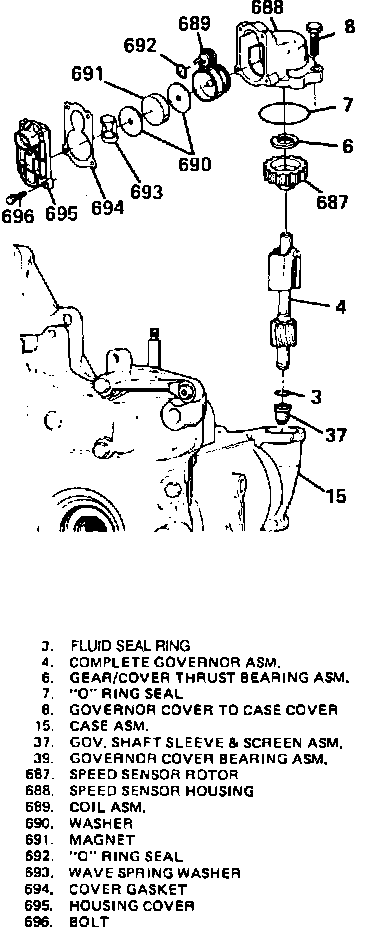

Fig. 9 Governor Replacement:

Refer to Fig. 9 for following procedure.
1. Remove screws, speed sensor housing and oil seal.
2. Remove bearing and rotor.
3. Remove governor assembly.
4. Remove fluid seal ring.
5. Reverse procedure to install.
