Home
>>
Chevrolet
>>
1993
>>
Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C100-C199
>>
C100
>>

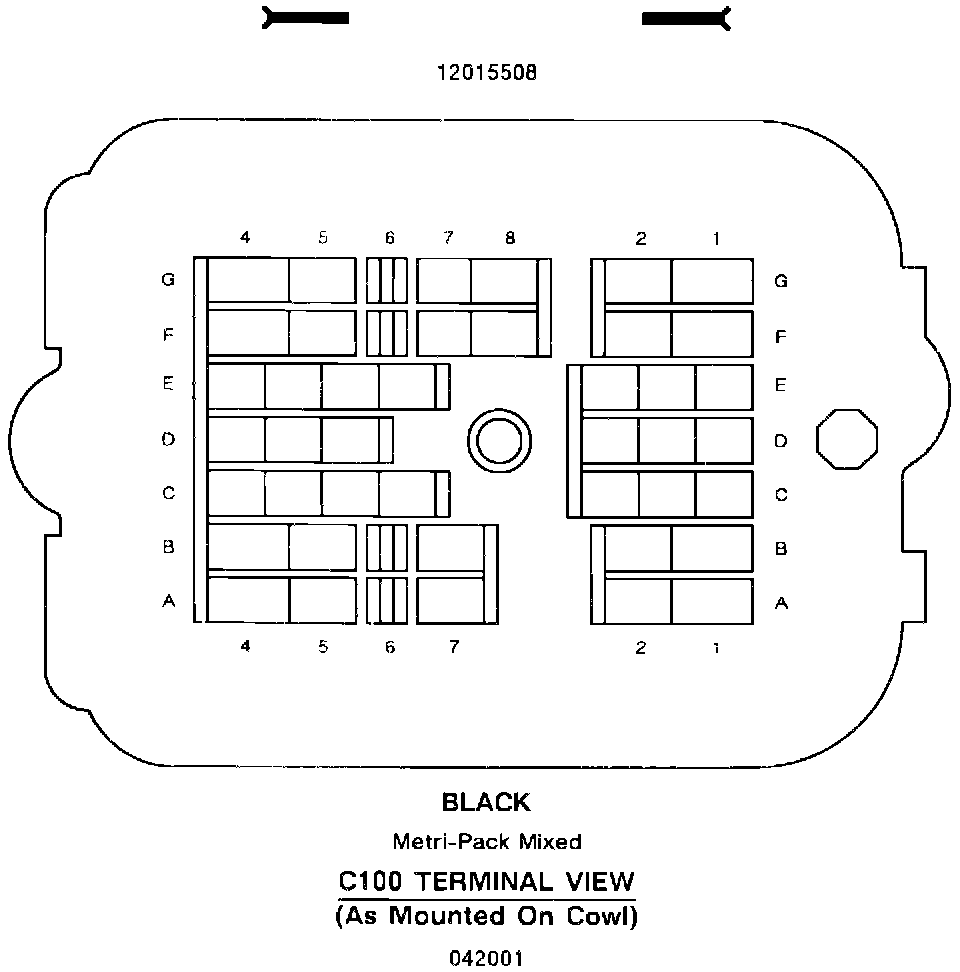

Terminal View
Terminal View
Connector C100:
