Removal/Installation

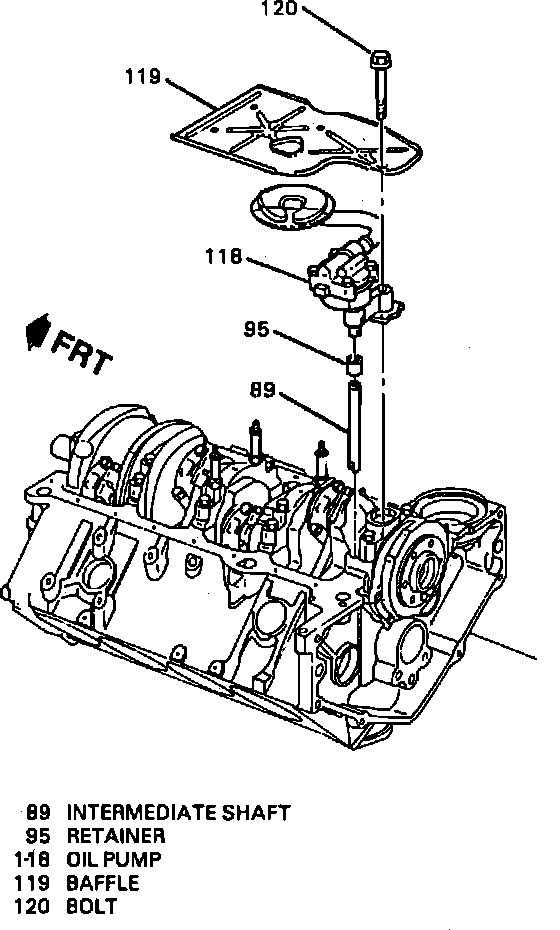

Fig. 17 Oil Pump Installation:

1. Remove oil pan as described previously.
2. Remove oil pan baffle nuts.
3. Remove pump to rear main bearing cap bolt and remove oil pan baffle, pump intermediate shaft and retainer, Fig. 17.
4. Reverse procedure to install. Prime oil pump with clean engine oil prior to installation.
