Fuel Pump Prime Connector

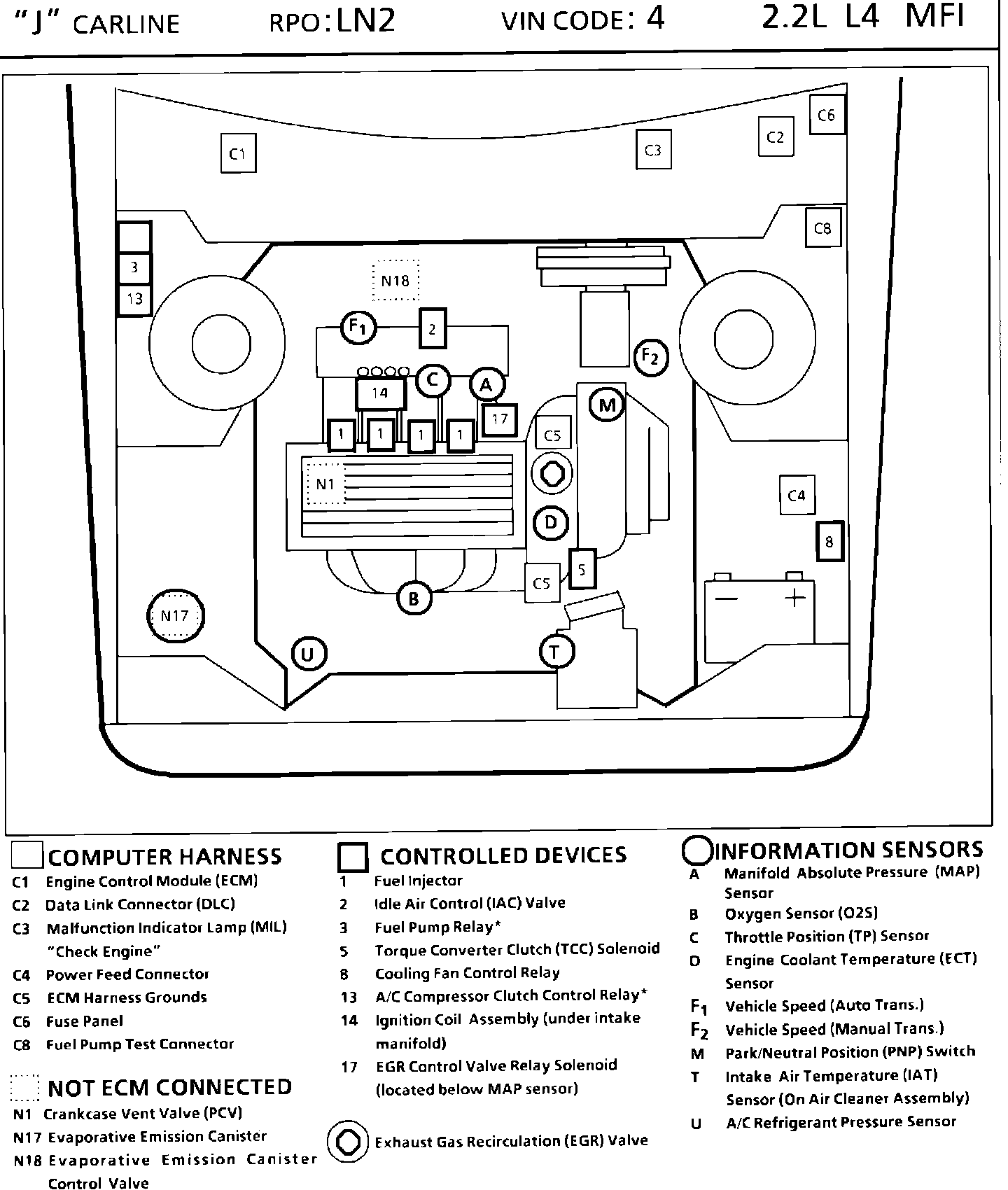

The fuel pump prime connector is located on the left rear of engine compartment.
