Electronic/Powertrain Control Module (ECM/PCM)

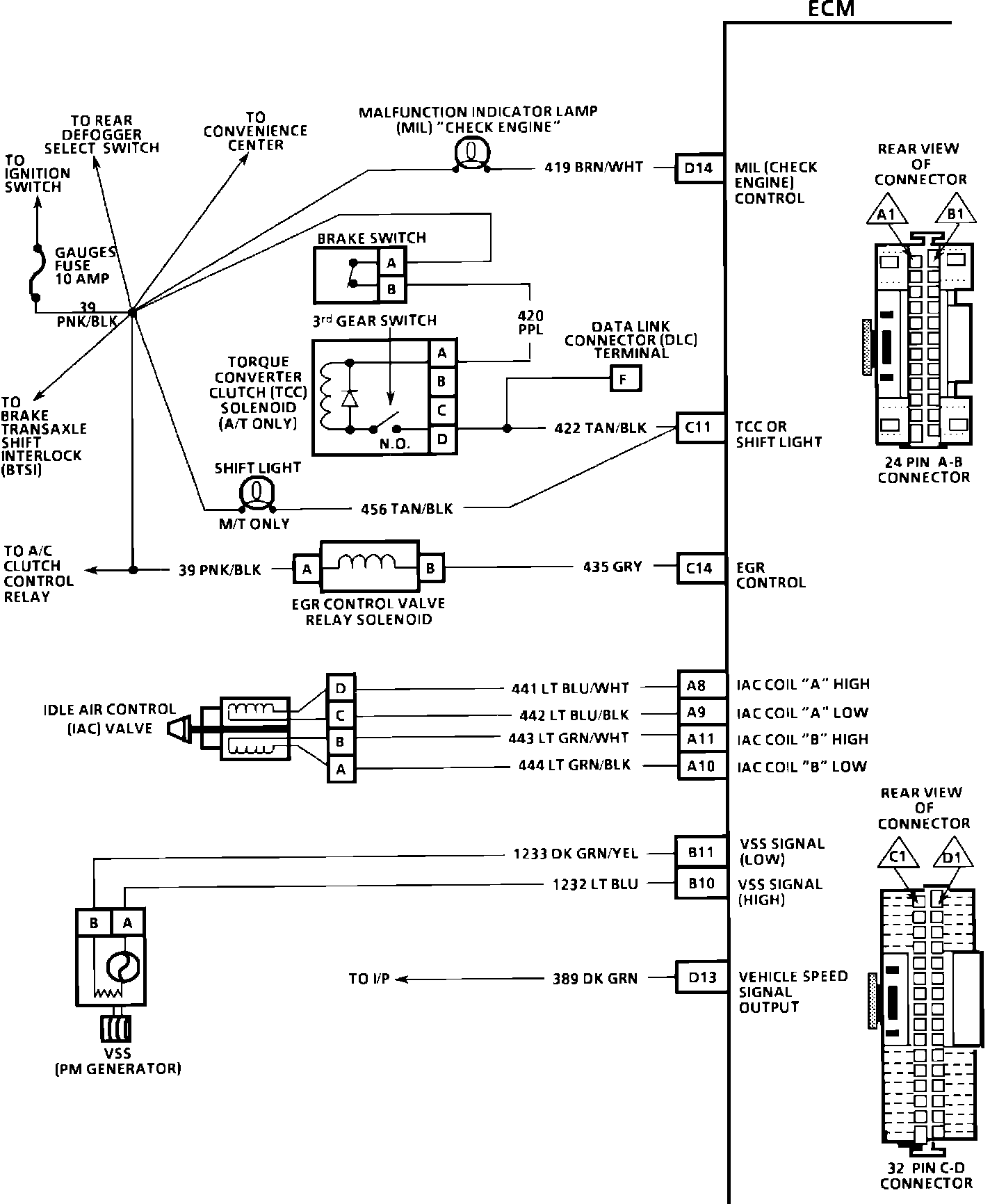

ECM Wiring Diagram Part 1 Of 4:

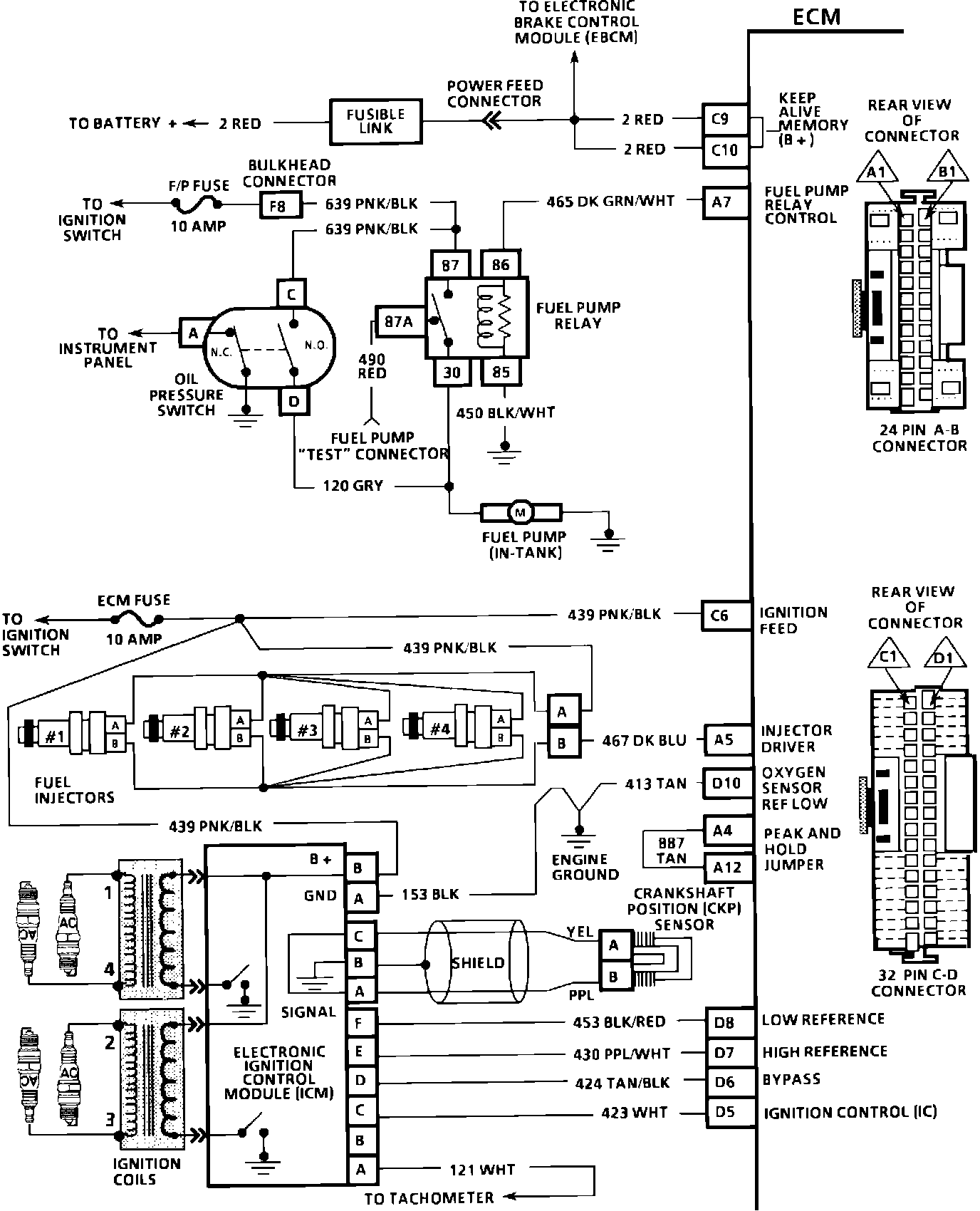

ECM Wiring Diagram Part 2 Of 4:

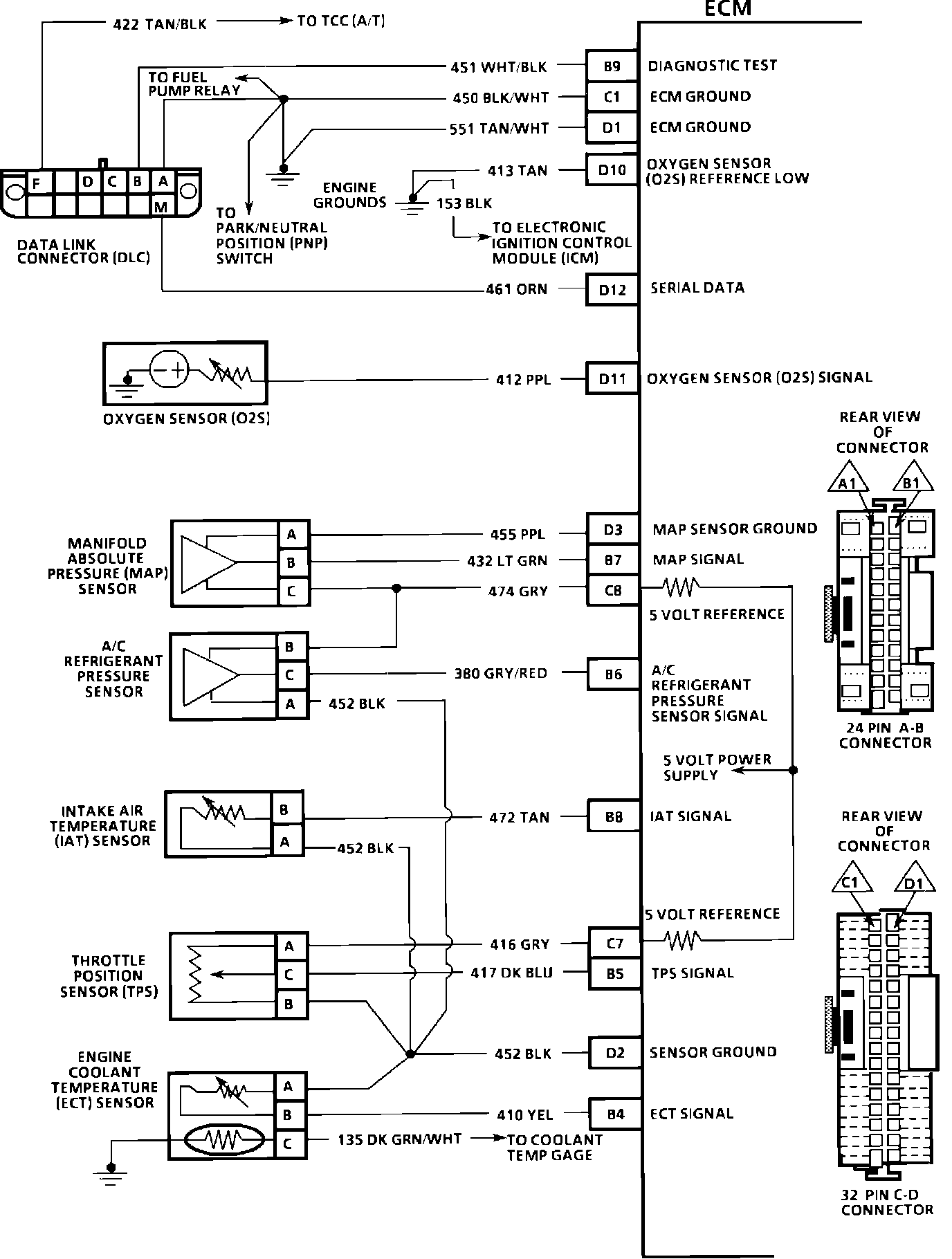

ECM Wiring Diagram Part 3 Of 4:

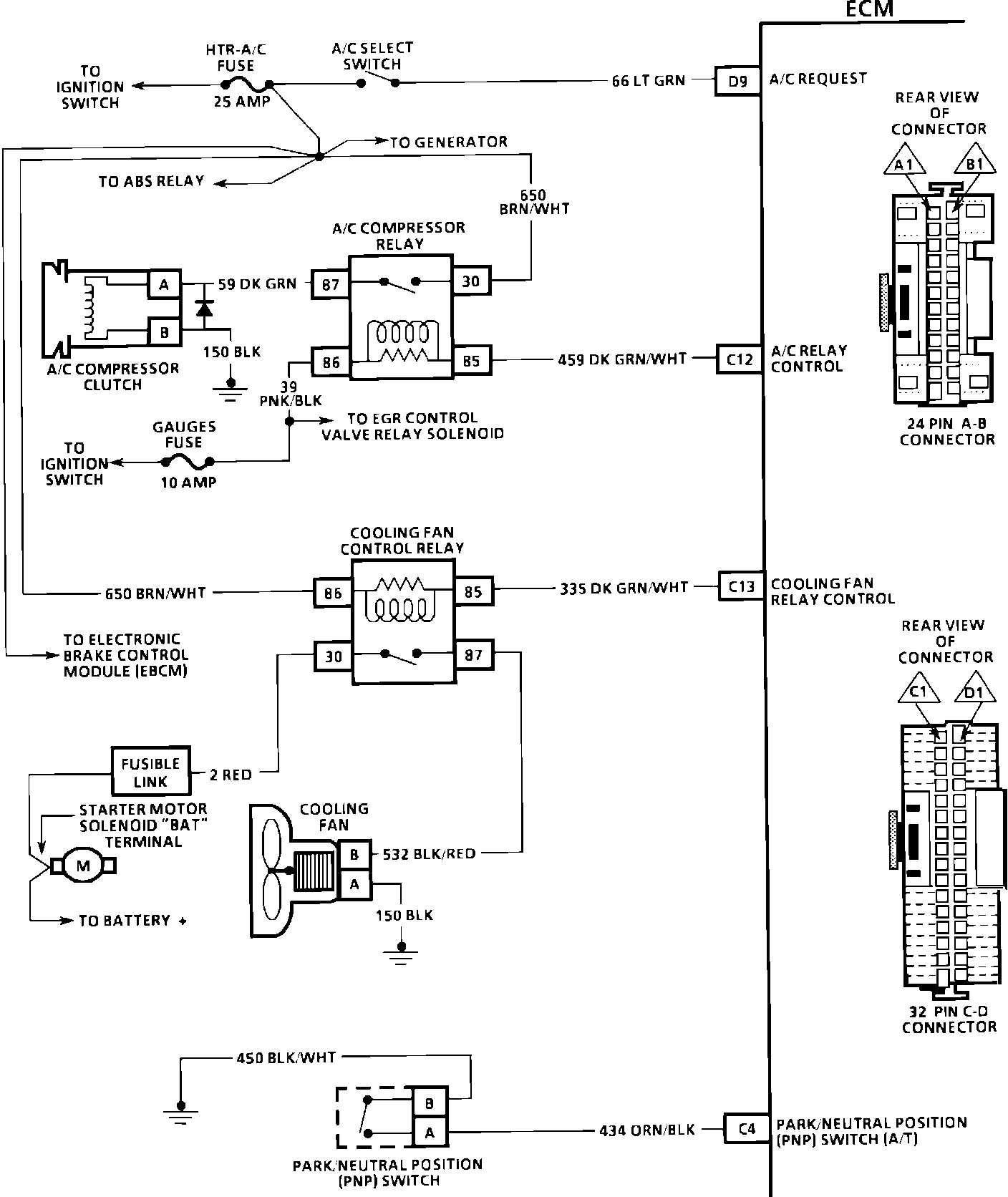

ECM Wiring Diagram Part 4 Of 4:
