Home >> Chevrolet >> 1993 >> Lumina V6-204 3.4L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Powertrain Controls >> Automatic Transaxle

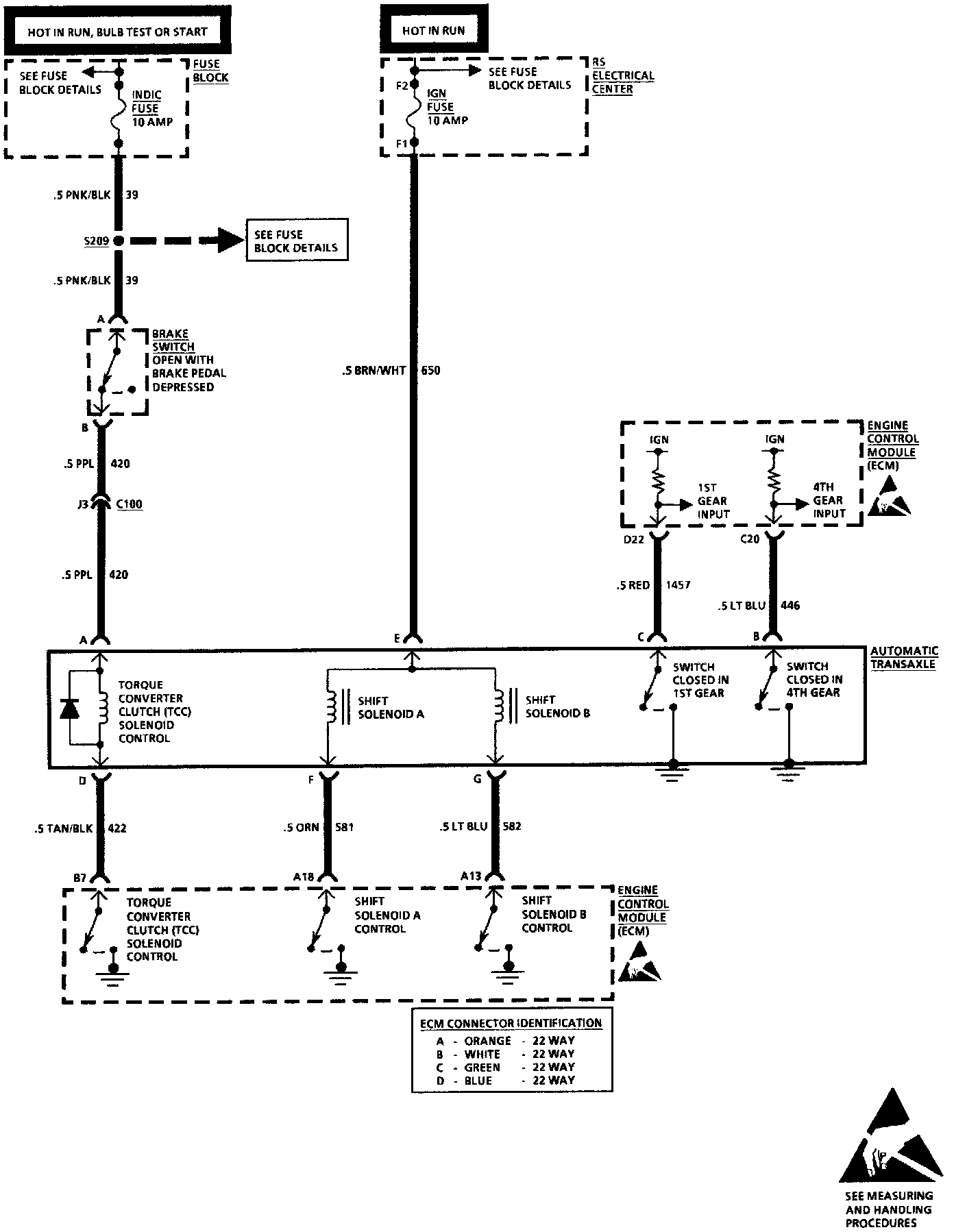

Automatic Transaxle

Multiport Fuel Injection: Automatic Transaxles:
