Headlamp Switch: Service and Repair

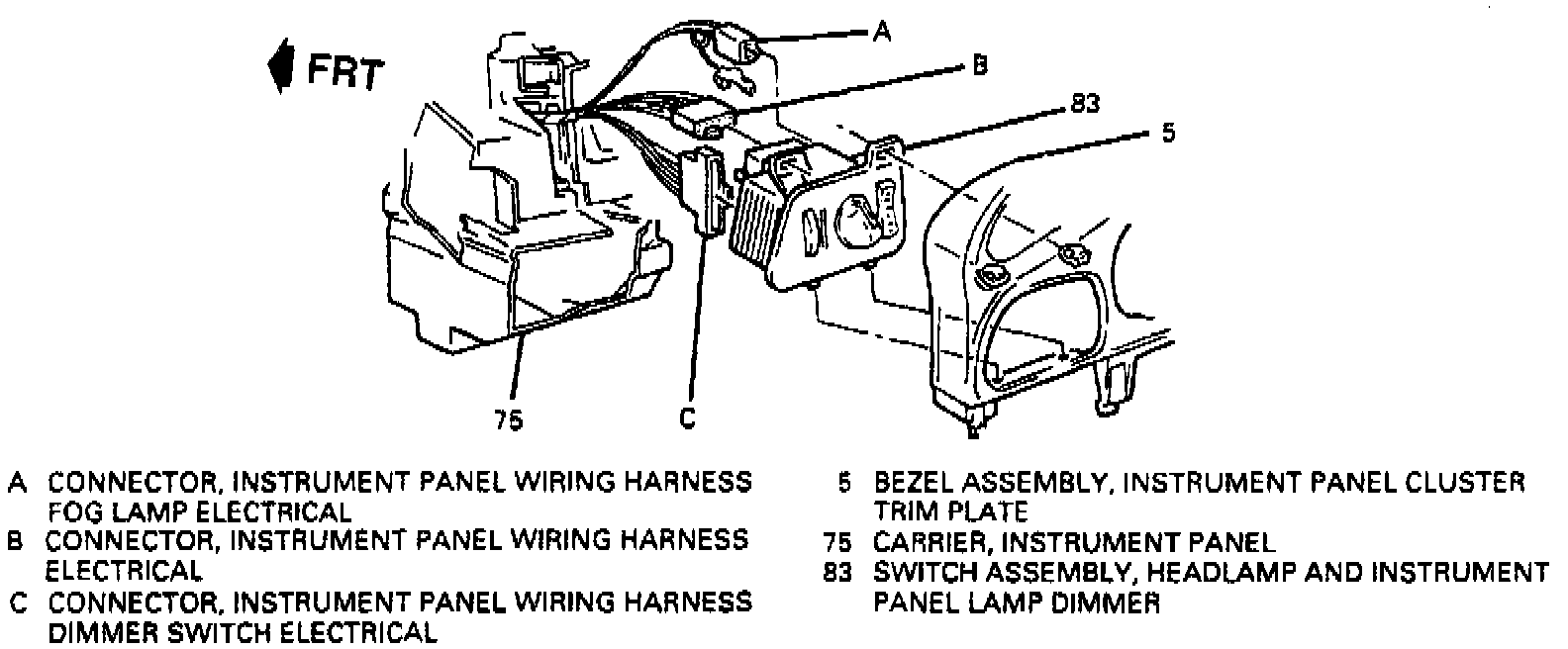

Fig. 9 Headlamp Switch Replacement:
1.
Remove switch assembly from bezel assembly,
Fig. 9.
2.
Disconnect electrical connector from switch assembly.
3.
Reverse procedure to install.
