Home >> Chevrolet >> 1994 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Manual Air Conditioning >> Blower Controls

Blower Controls

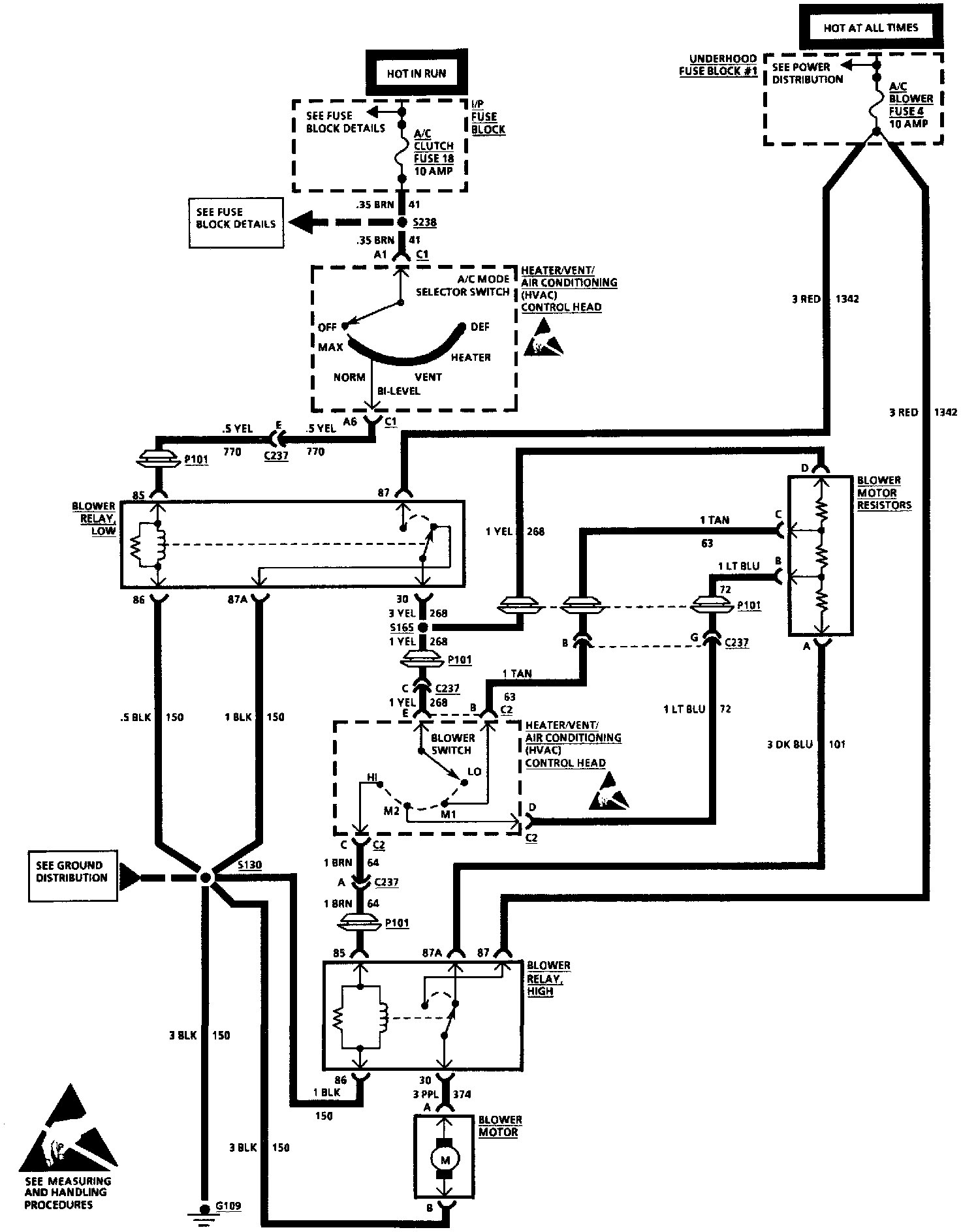

HVAC Blower Control: C60, Manual:
