Headlamp Switch: Service and Repair

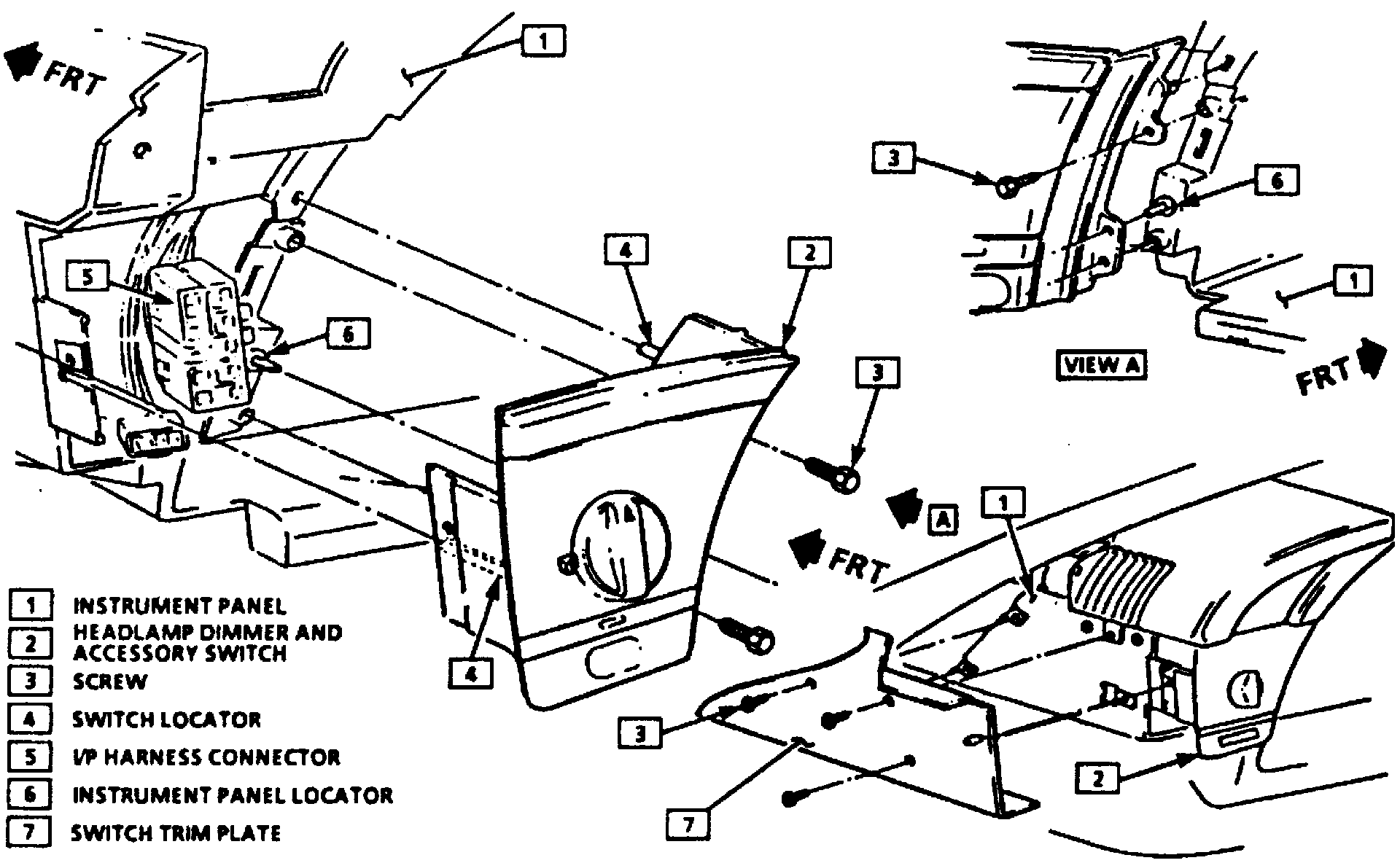

Fig. 17 Headlamp Switch Replacement:

1. Disconnect battery ground cable.
2. Remove instrument cluster bezel.
3. Remove attaching screws from righthand side of switch, Fig. 17.
4. Remove switch trim plate attaching screws.
5. Disconnect electrical connectors, then remove switch.
6. Reverse procedure to install.
