Steering Wheel: Service and Repair

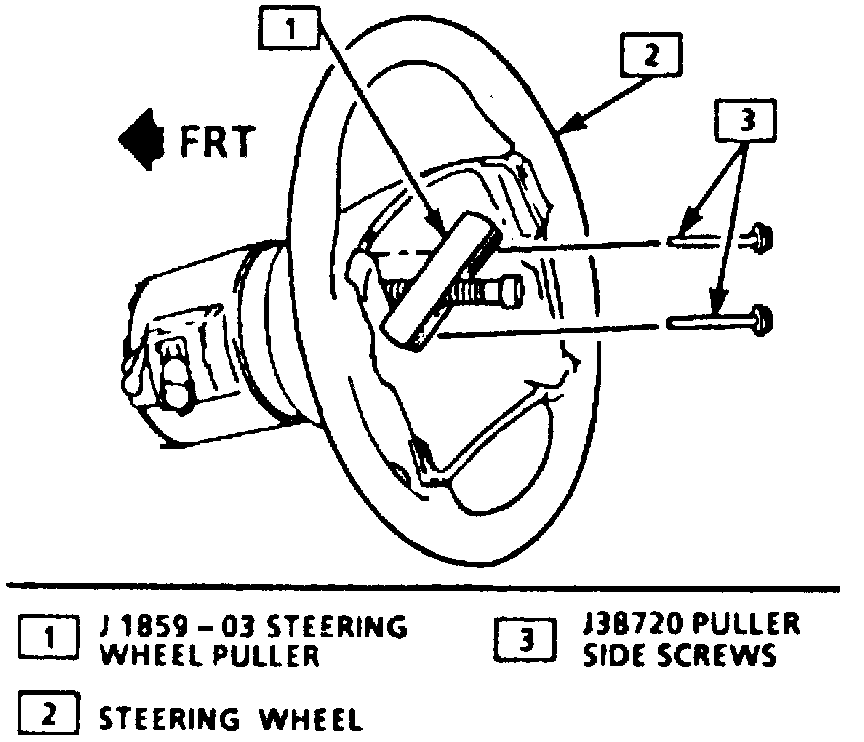

Fig. 23 Steering Wheel Removal:

Mark position of steering wheel in relation to shaft prior to removal to ensure correct installation.

REMOVAL
1. Disconnect battery ground cable.
2. Remove steering wheel retaining nut, then disconnect horn electrical connector.
3. Using puller tool No. J-1859-03, or equivalent, pull steering wheel from steering shaft, Fig. 23.

INSTALLATION
1. Connect horn electrical connector.
2. Position steering wheel spline alignment marks to alignment marks of steering shaft splines, then install steering wheel.
3. Install steering wheel retaining nut and torque to 30 ft. lbs.
4. Ensure ignition switch is in OFF position, then connect battery ground cable.
