Home >> Chevrolet >> 1995 >> Beretta L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems

Antilock Brakes / Traction Control Systems

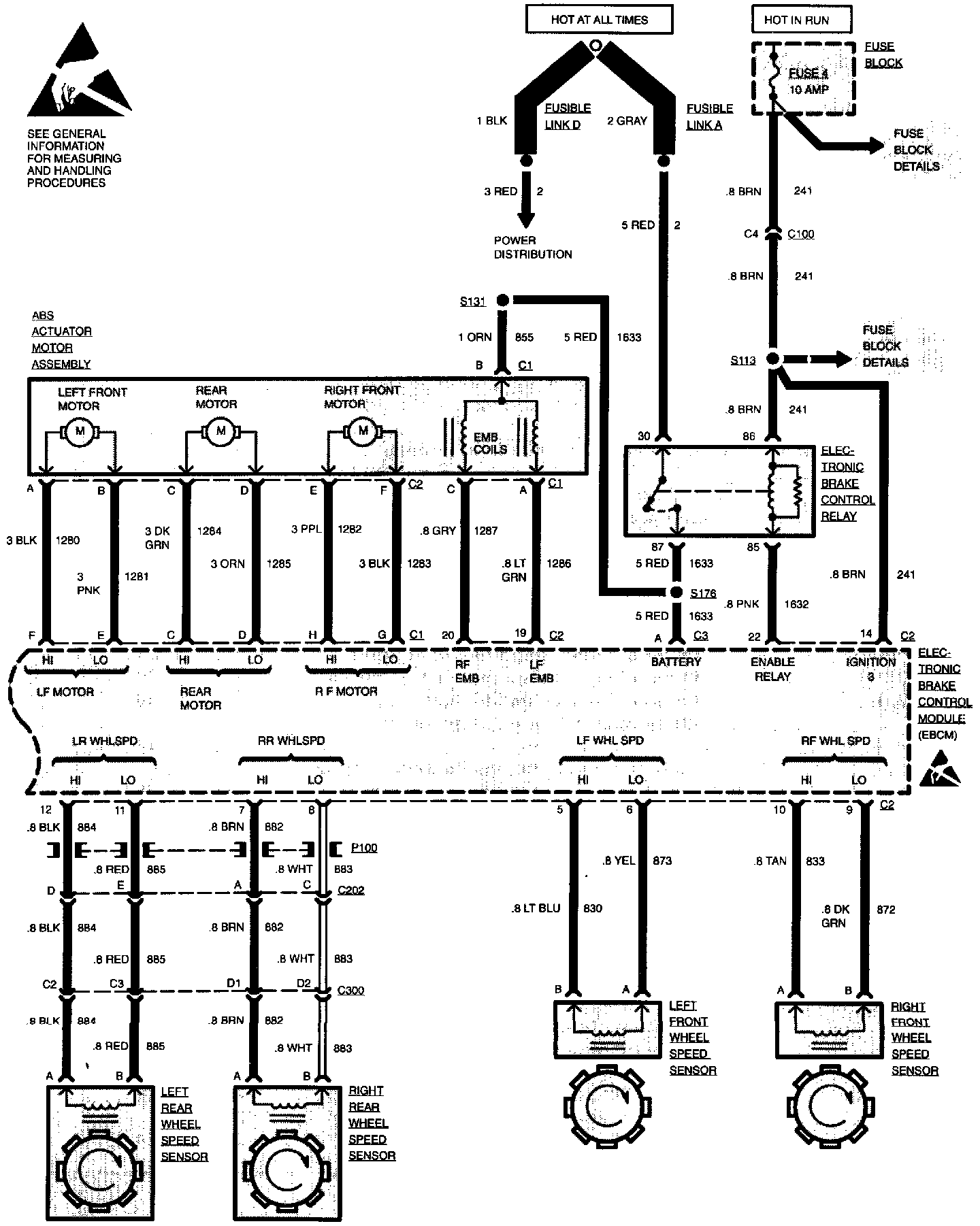

Antilock Brake (1 Of 2):

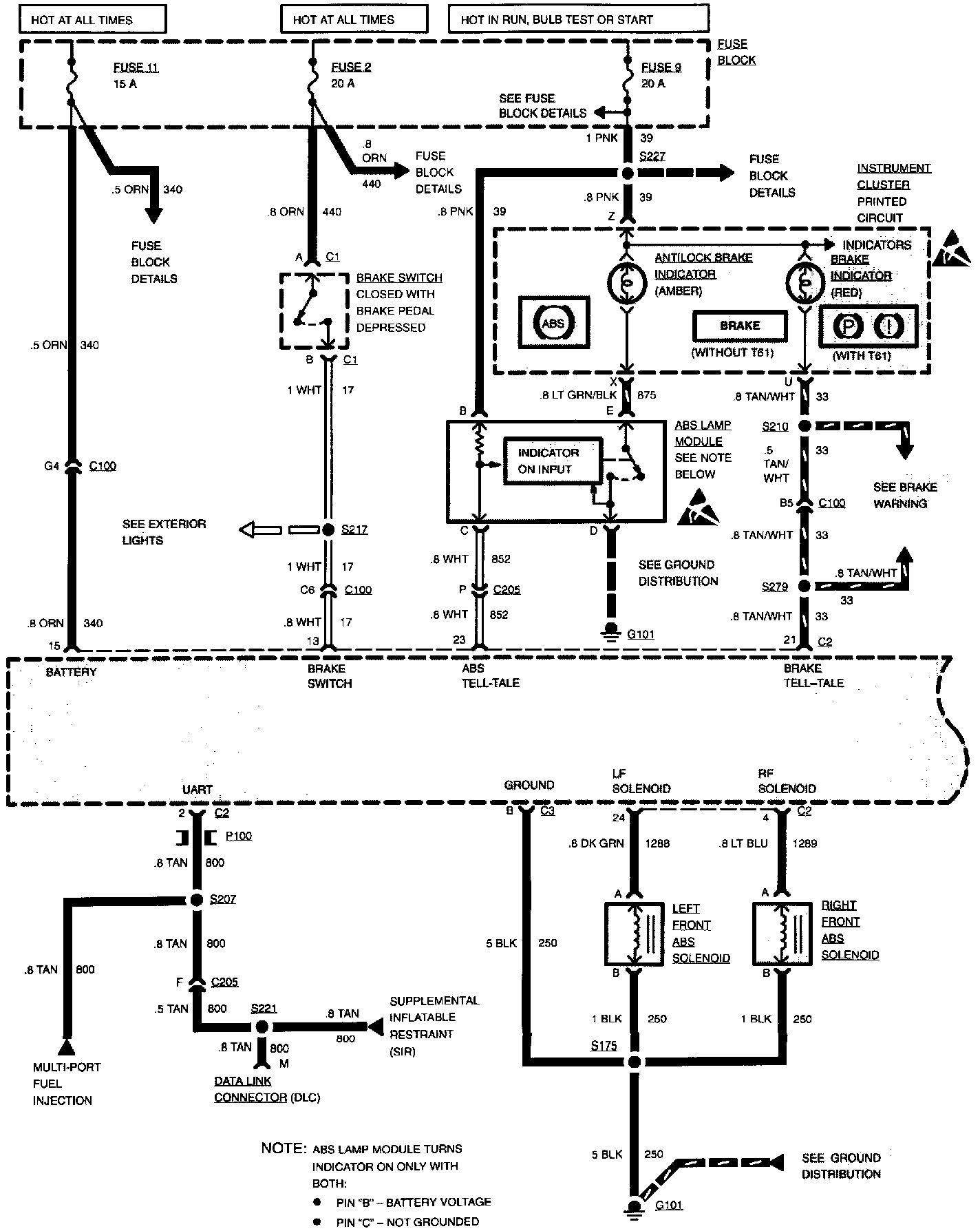

Antilock Brake (2 Of 2):
