Instrument Panel Cluster - Revised Connector Labeling

File in Section: 8 - Chassis/Body Electrical

Bulletin No.: 53-83-14

Date: September, 1995

SERVICE MANUAL UPDATE

Subject:
Sections 8A, 8C1, 9D - Revised Instrument Panel Cluster Connector Pin-Out Labeling

Model:
1995 Chevrolet Cavalier

Due to a late production change in connector labeling, the connector pin-out information for the Chevrolet Instrument Panel Cluster may be different than the 1995 Service Manual. This may affect schematic and diagnostic information in Sections 8A (Electrical Diagnosis), 8C1 (Electronic Instrument Panel Cluster) and 9D (Vehicle Theft Deterrent).

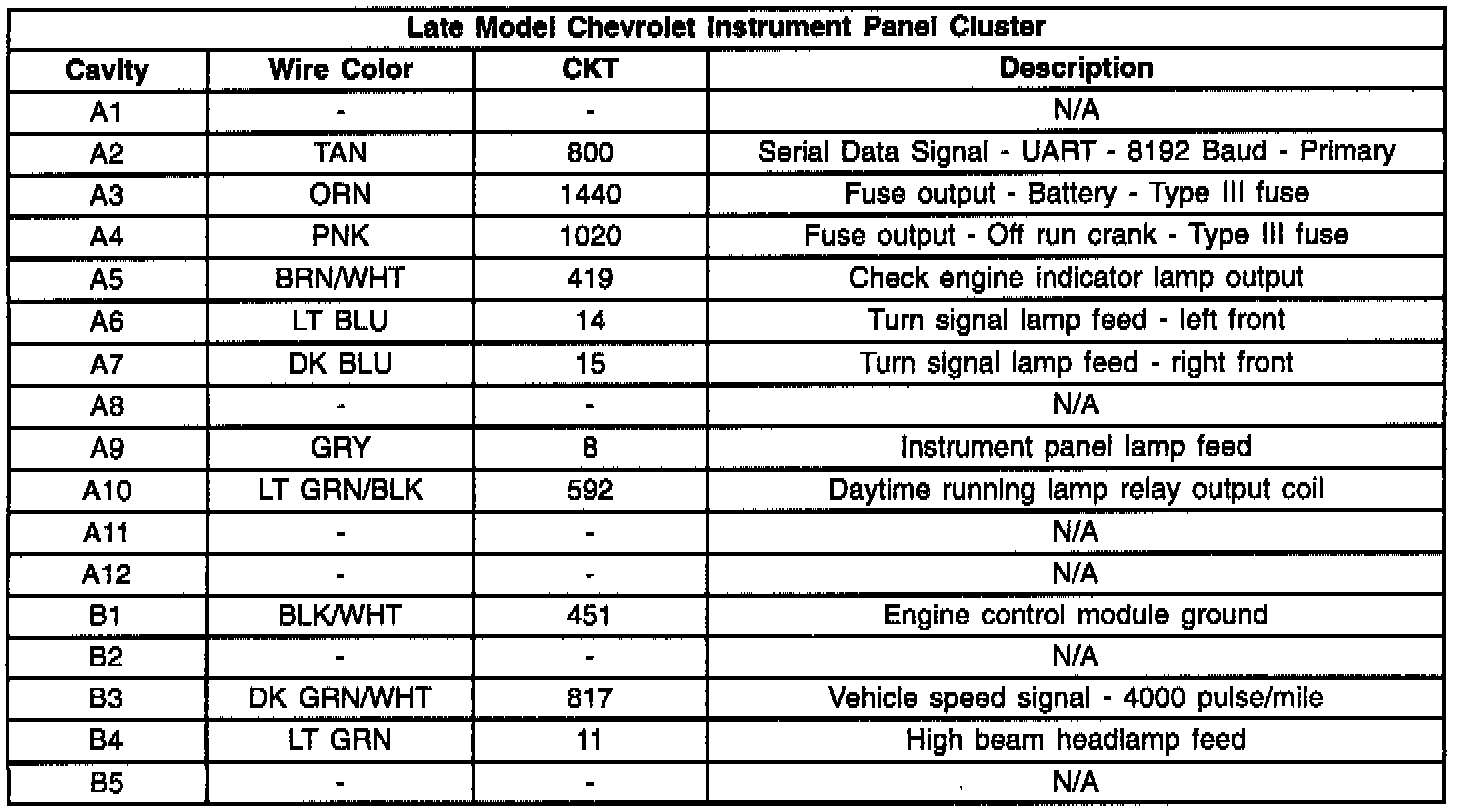

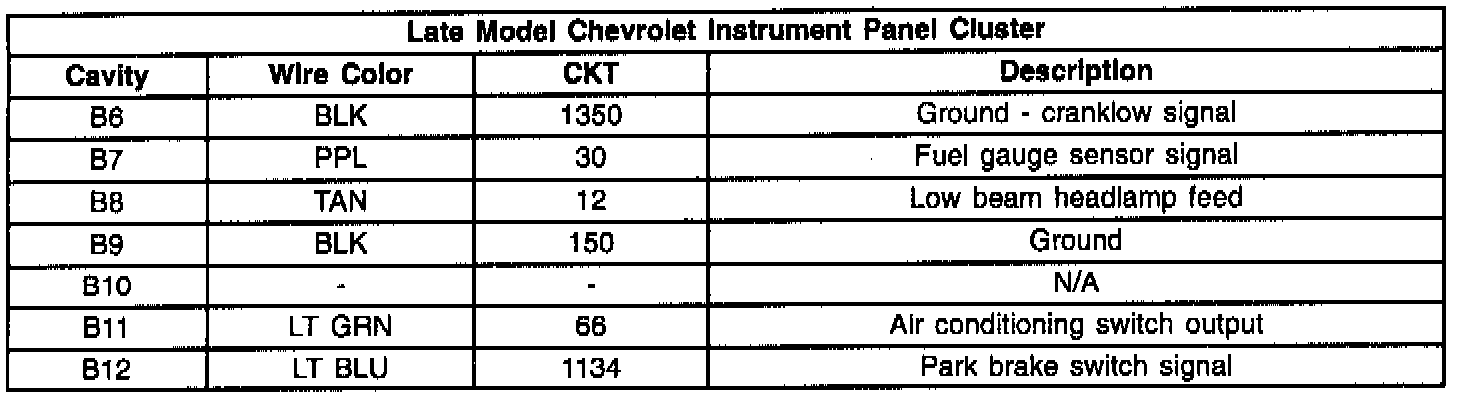

Reference Chart of the new Instrument Panel Cluster Pin-out information
