Secondary Injector Control Module: Service and Repair

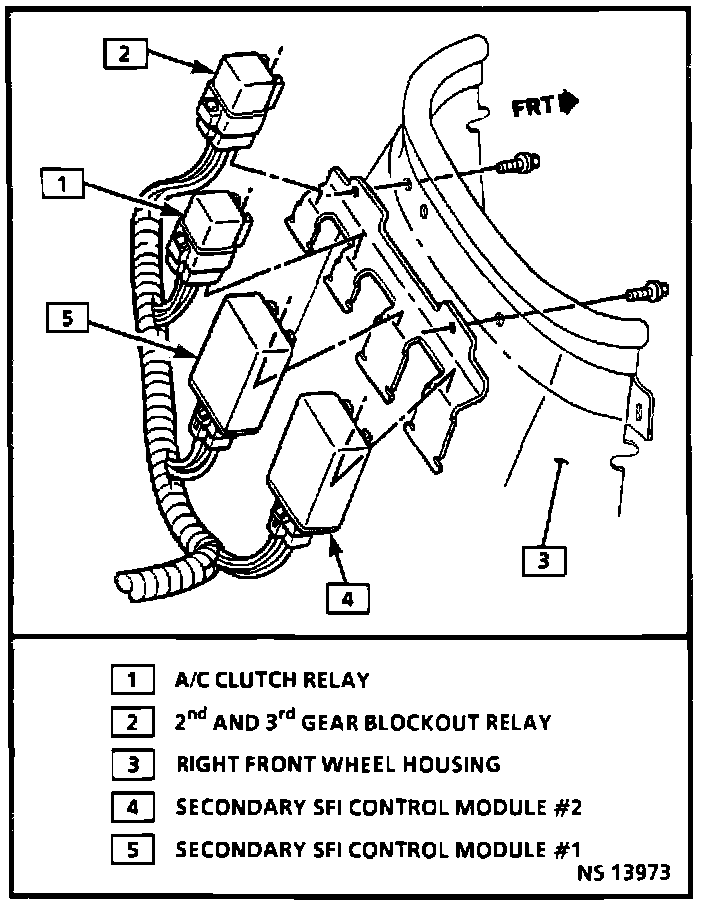

Underhood Relay Locations:

REMOVE OR DISCONNECT
1. Electrical connector from Module.
2. Module from bracket.

INSTALL OR CONNECT
1. Module to bracket.
2. Electrical connector.
