Home
>>
Chevrolet
>>
1995
>>
Corvette V8-350 5.7L VIN P MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

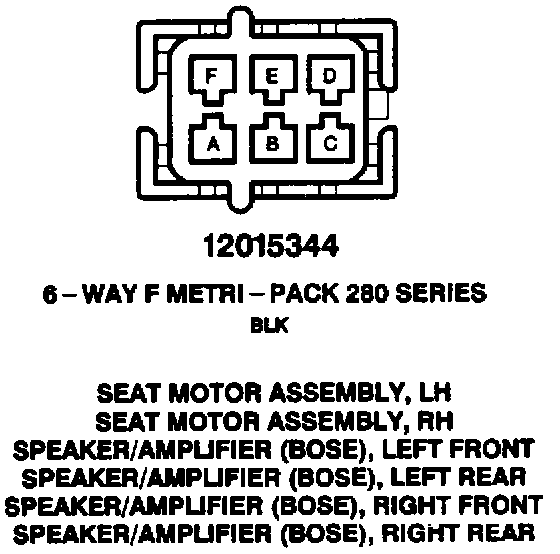

Seat Motor Assembly, LH & RH, Speaker/Amplifier (Bose), LH Front & Rear & RH Front & Rear:
