Pictoral Views

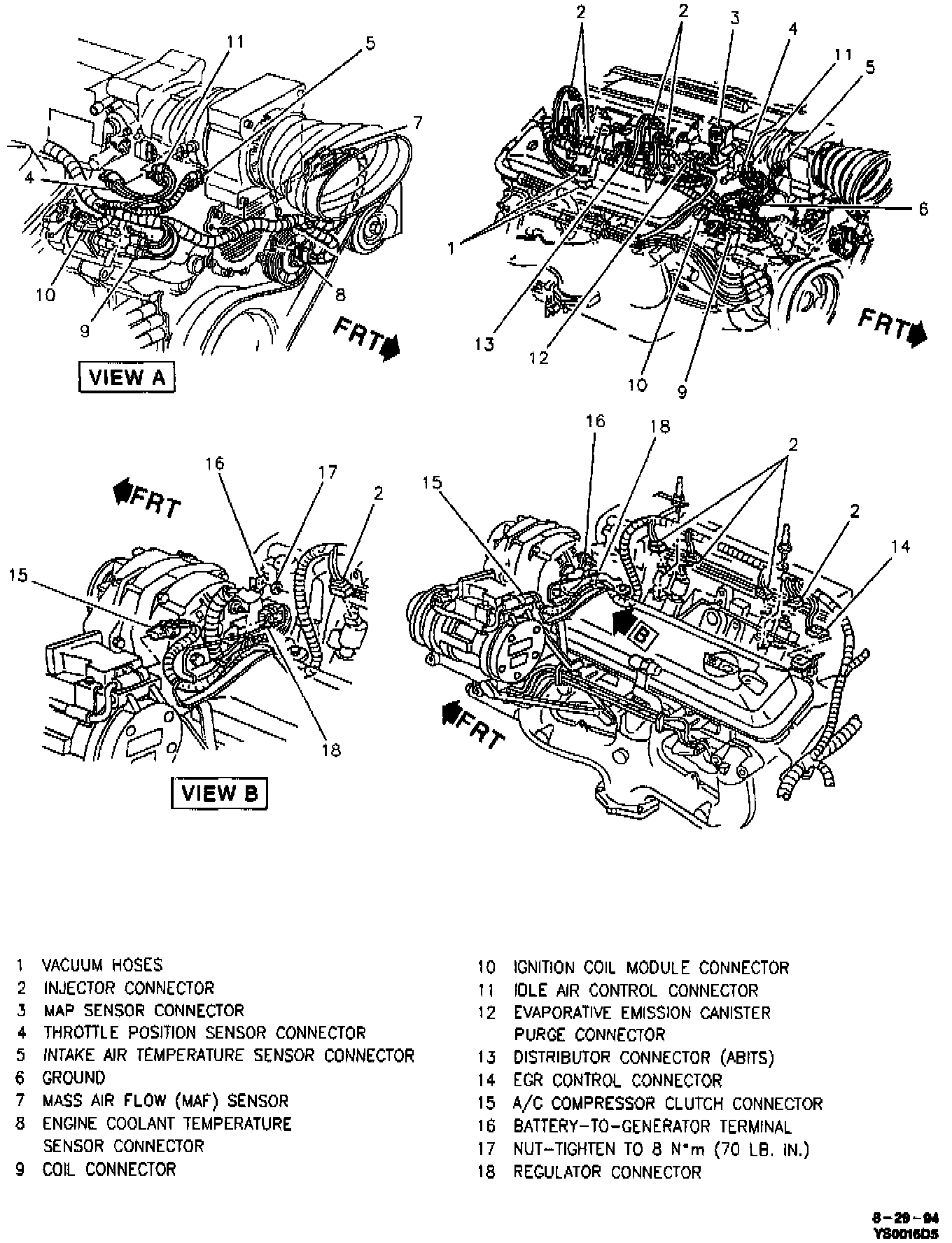

Engine Harness - Top Front

Engine Harness - Top Front:

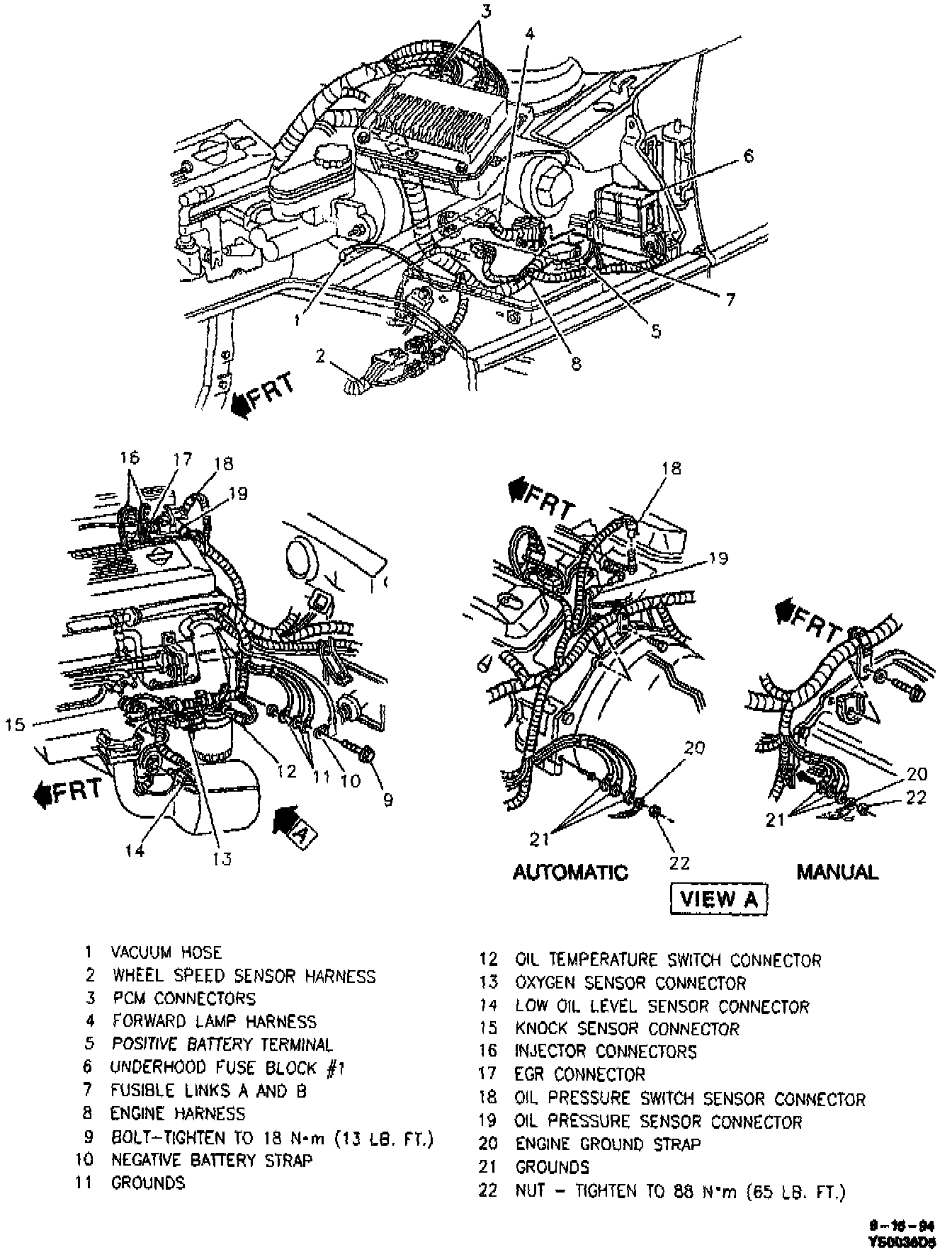

Engine Harness - Right Rear

Engine Harness - Right Rear:

Engine Harness - Left Rear

Engine Harness - Left Rear:

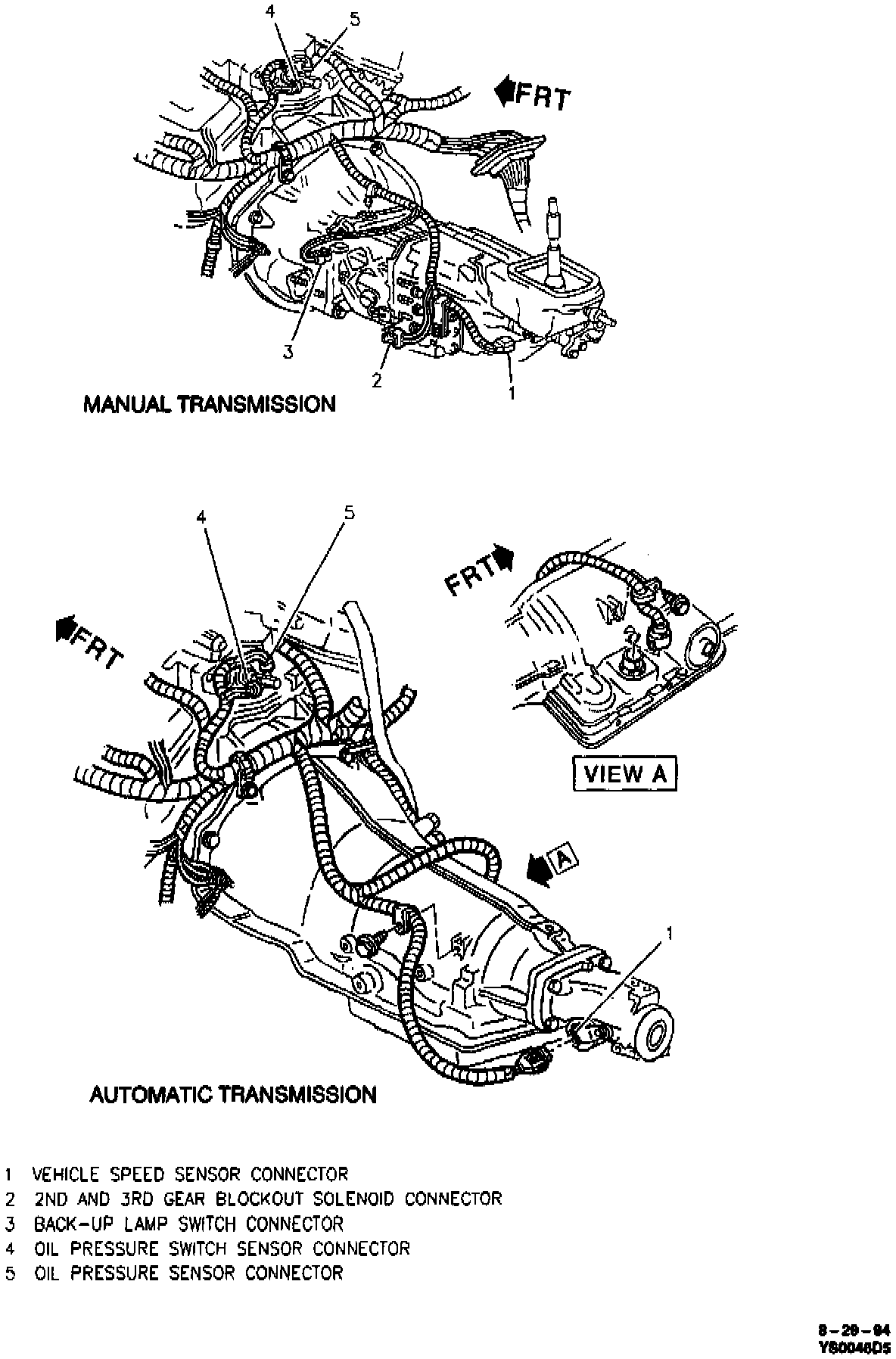

Engine Harness - Rear

Engine Harness - Rear:
