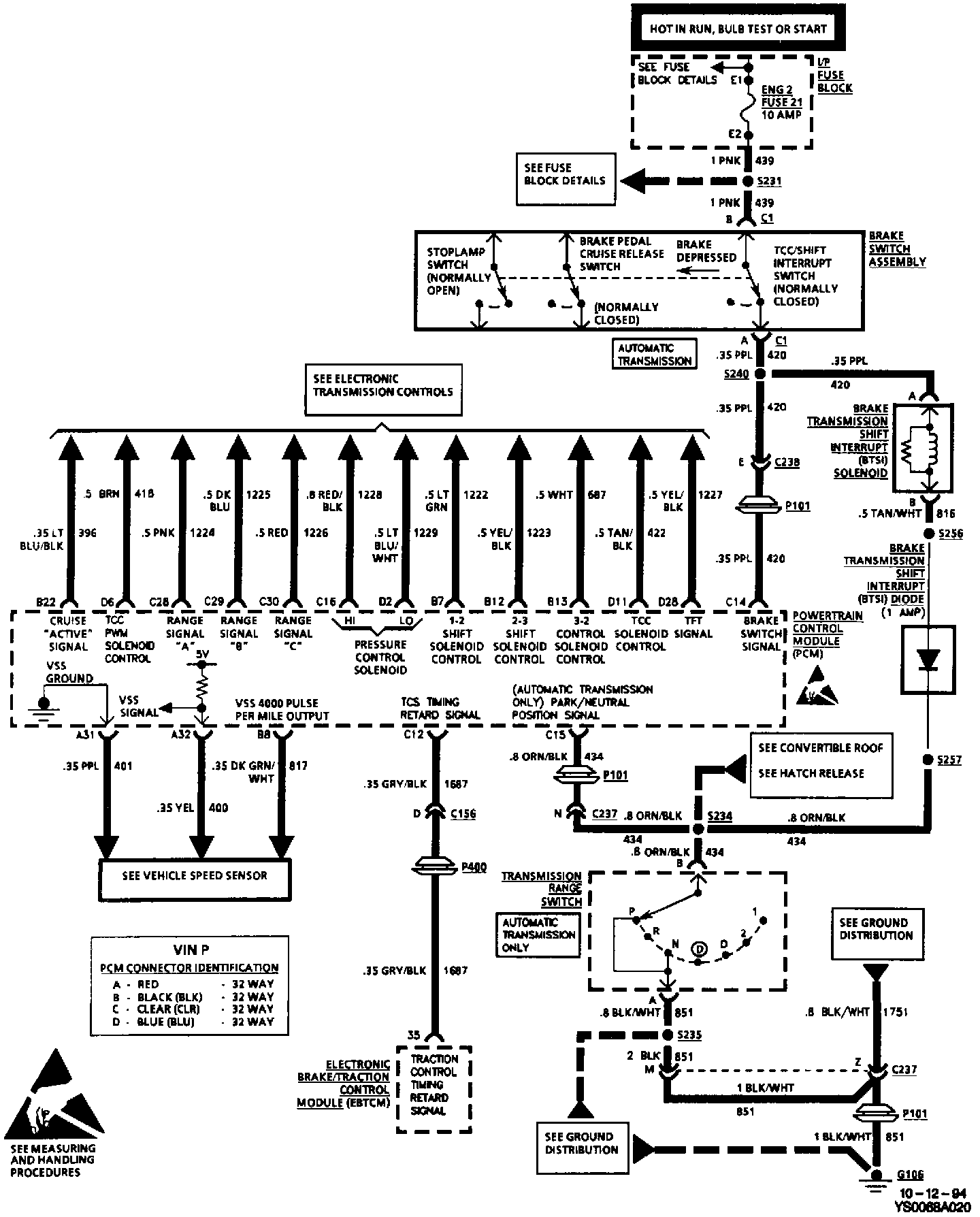

Electronic Transmission Control (M30), Traction Control And VSS:

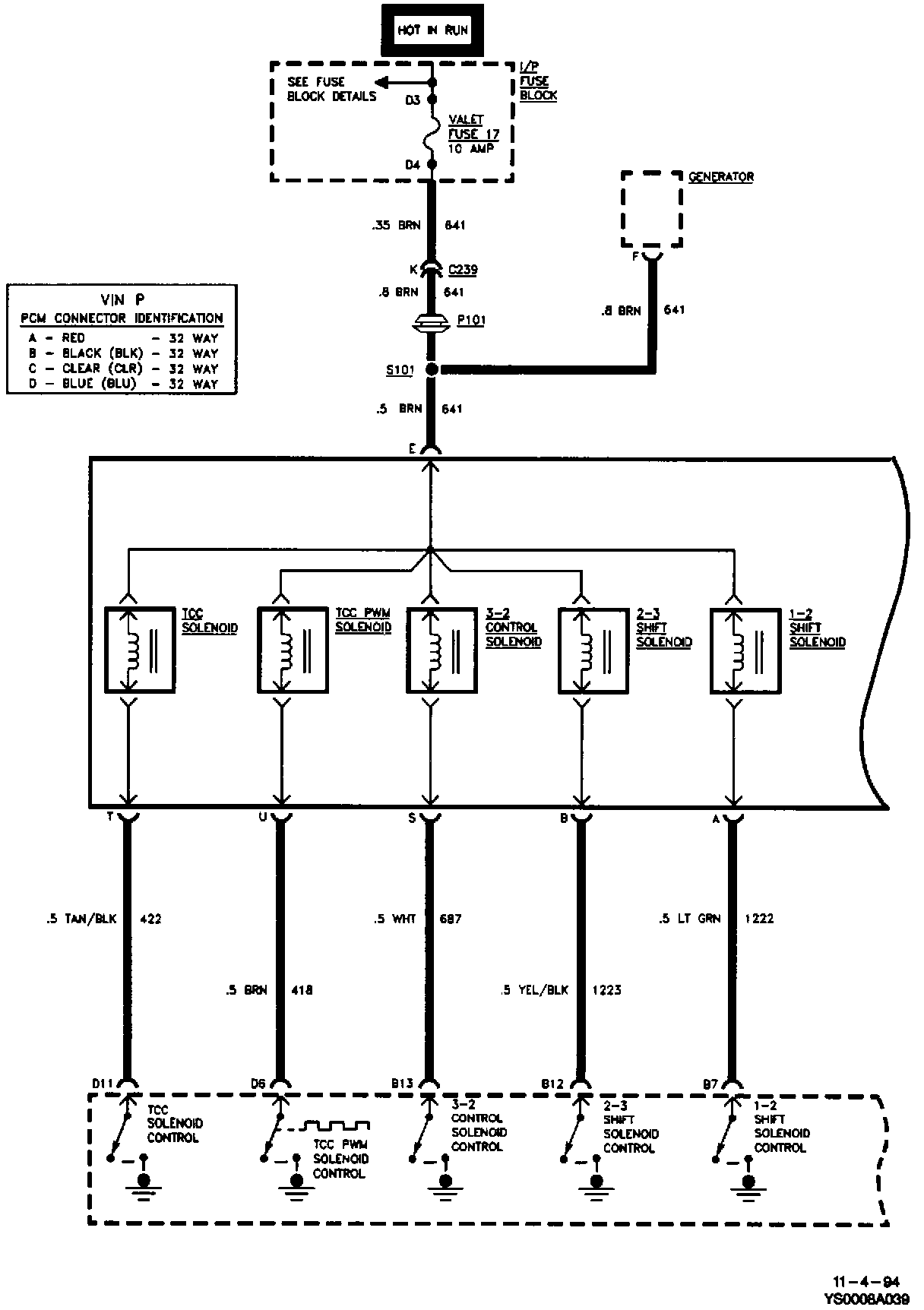

Electronic Transmission Controls (Part 1 Of 2):

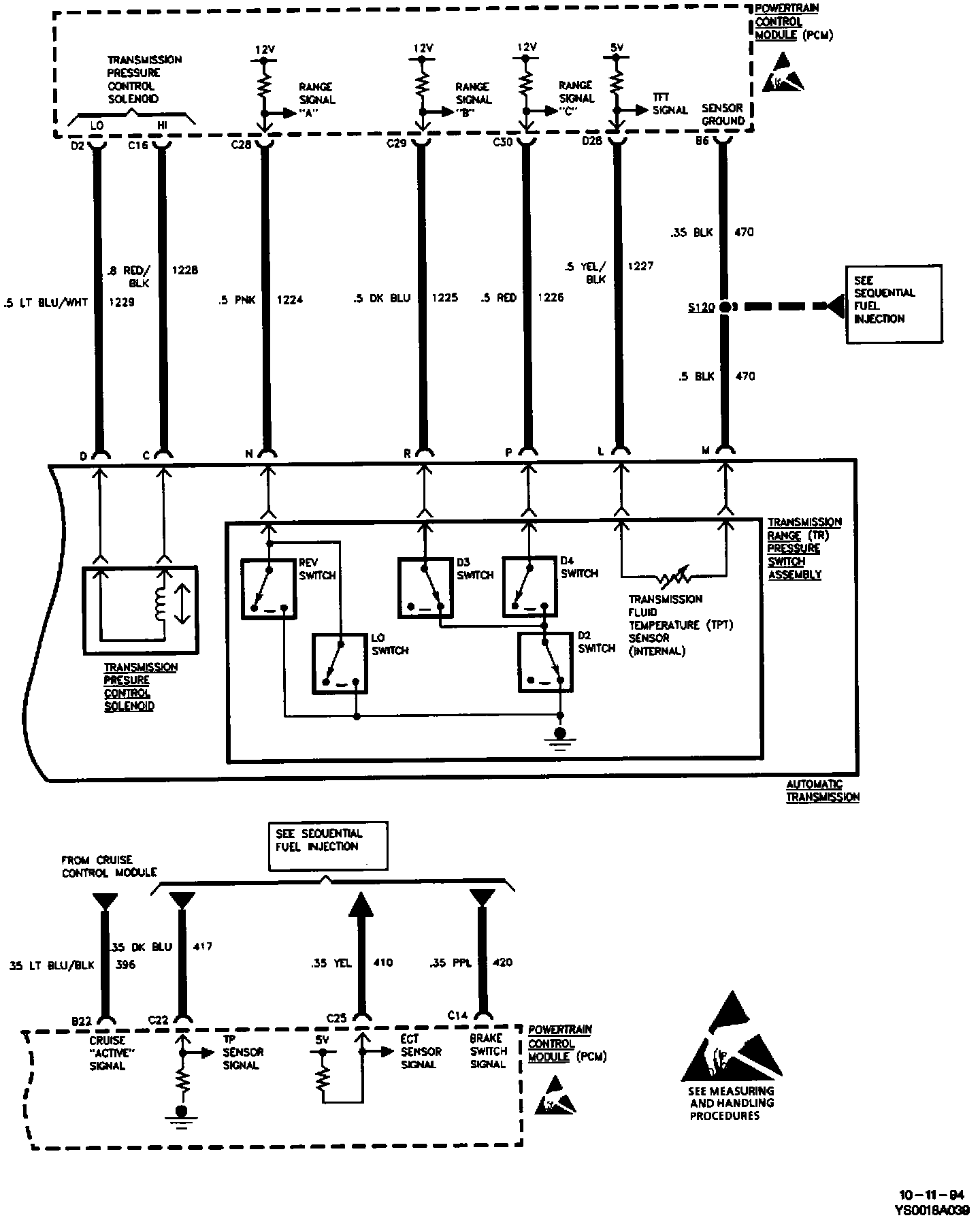

Electronic Transmission Controls (Part 2 Of 2):
