Home >> Chevrolet >> 1995 >> Lumina V6-204 3.4L DOHC VIN X SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> Speedometer Module >> Digital Speedometer Module, Seo

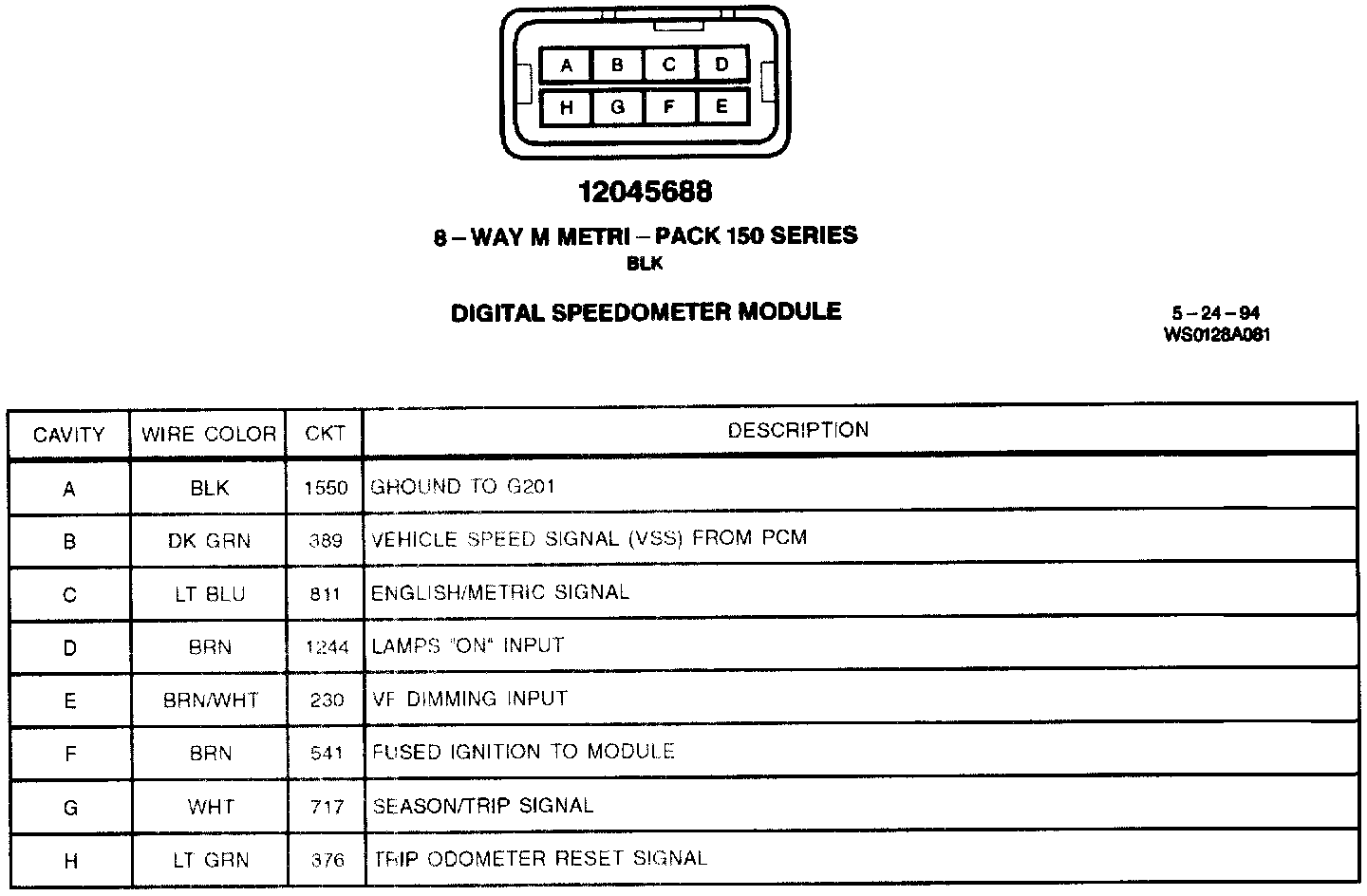

Digital Speedometer Module, Seo

Digital Speedometer Module:
