Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 1996 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Motor >> Testing and Inspection

Windshield Washer Motor: Testing and Inspection

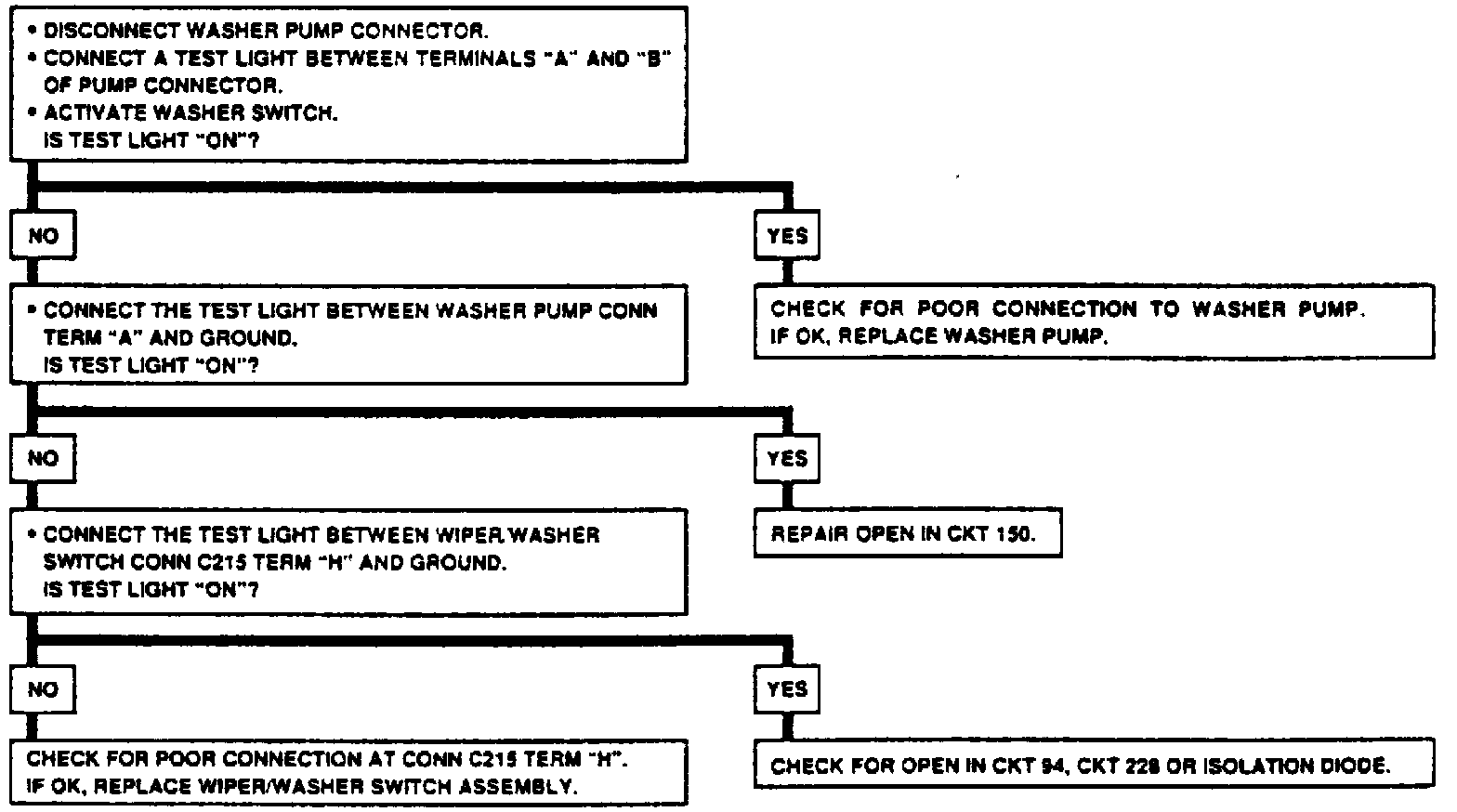

Fig. 39 Test 8: Washers Do No Operate:
