Home >> Chevrolet >> 1996 >> Corsica L4-2.2L VIN 4 >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Blower Control

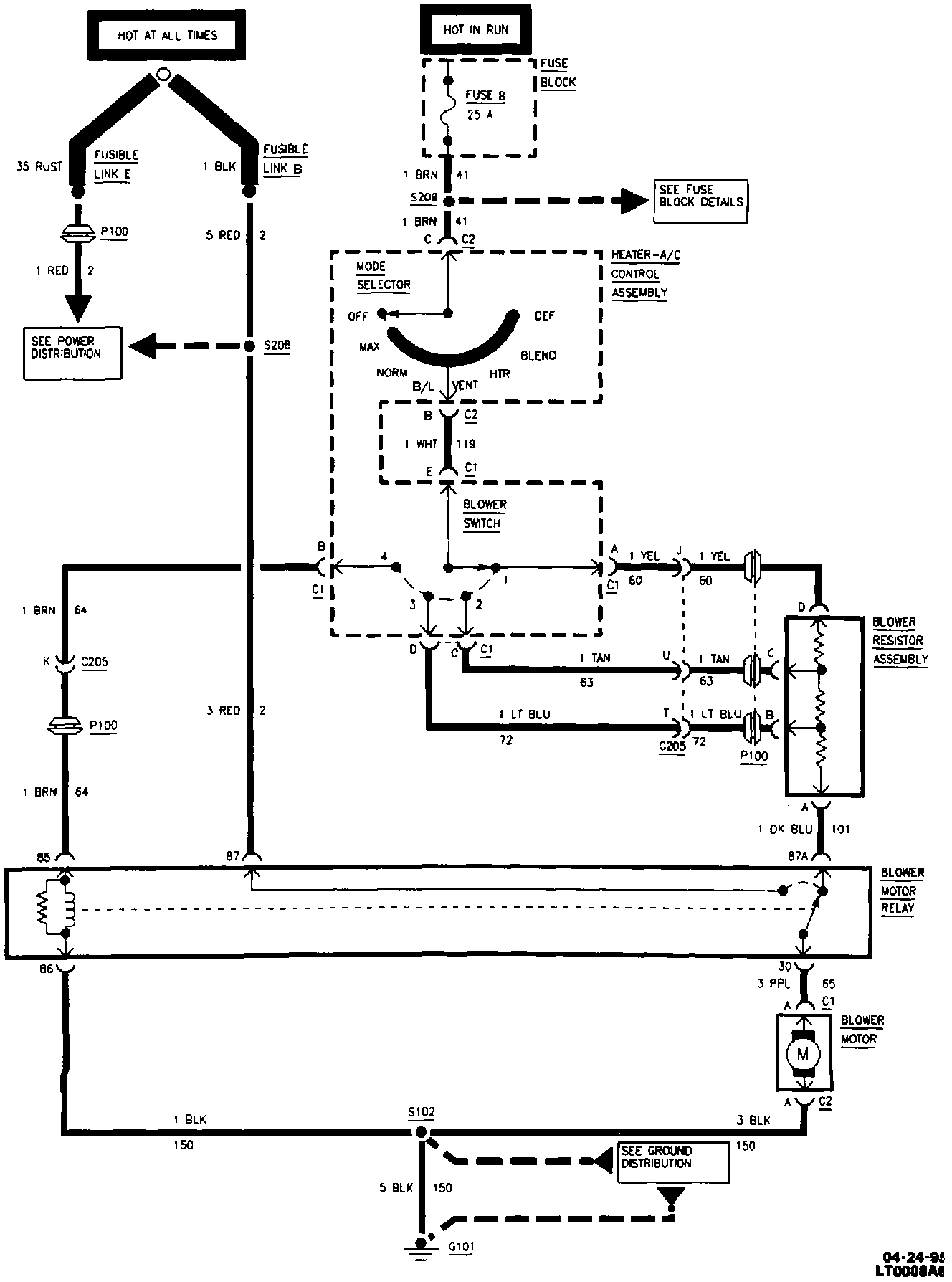

Blower Control

Blower Controls: C60, Manual:
