Home >> Chevrolet >> 1996 >> Corsica L4-2.2L VIN 4 >> Repair and Diagnosis >> Locations >> Ground Locations >> Grounds By Number >> G101

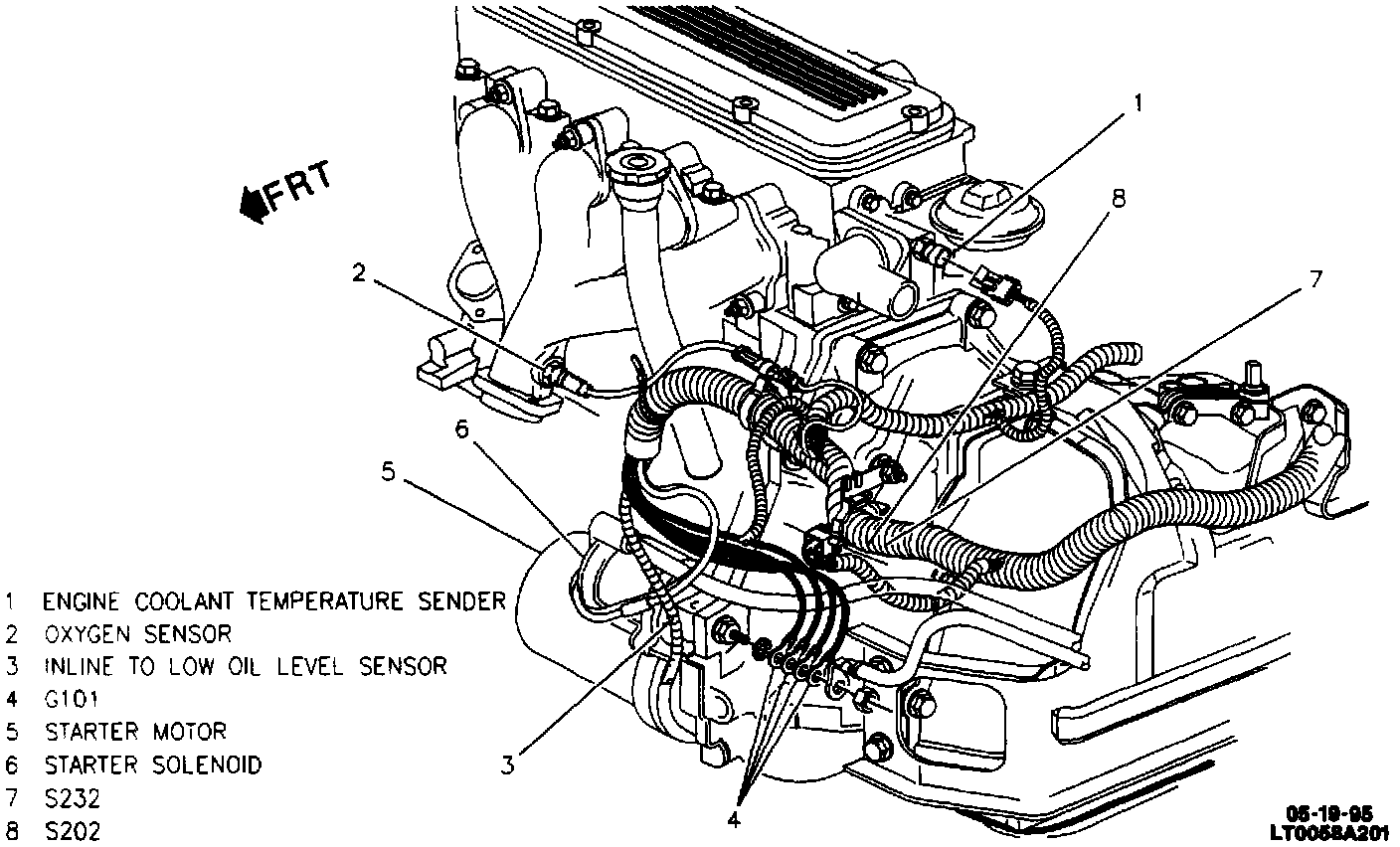

G101

LH Front Of Engine/Transaxle:



Lower Front Of Engine:
