Valve Rocker Arm Cover Removal

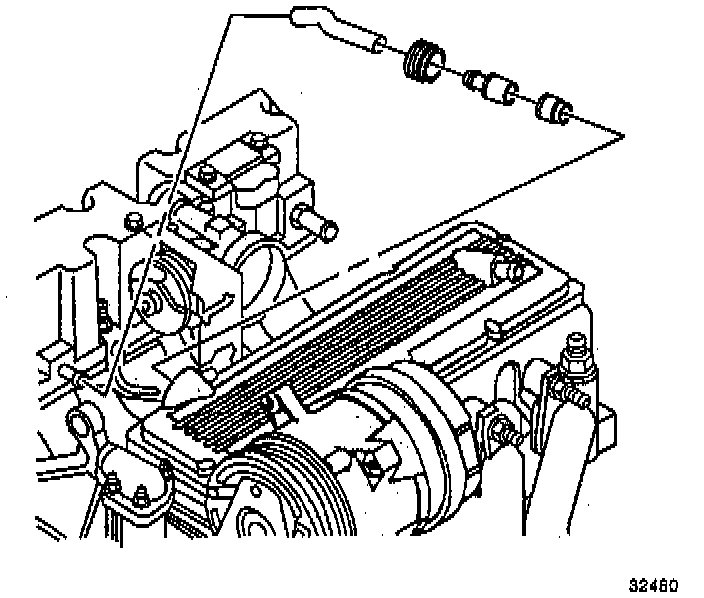

1. Remove the crankcase vent valve (PCV) and pipe assembly.

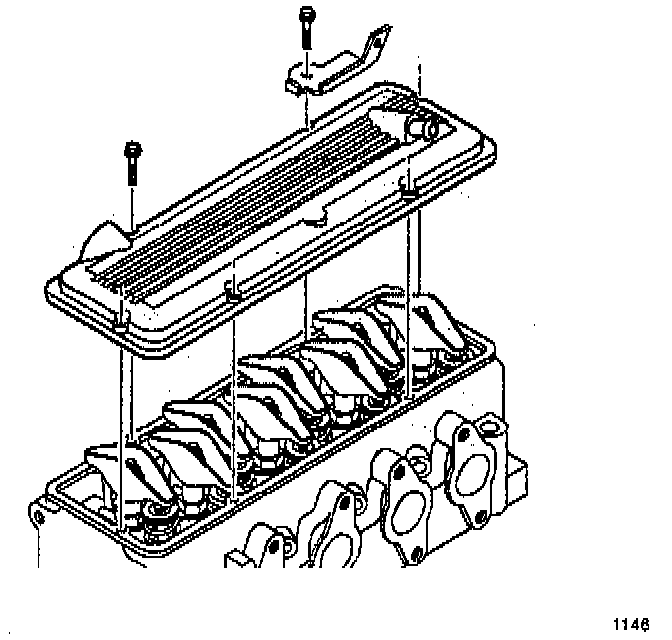

2. Remove the valve cover bolts.
3. Remove the valve cover.

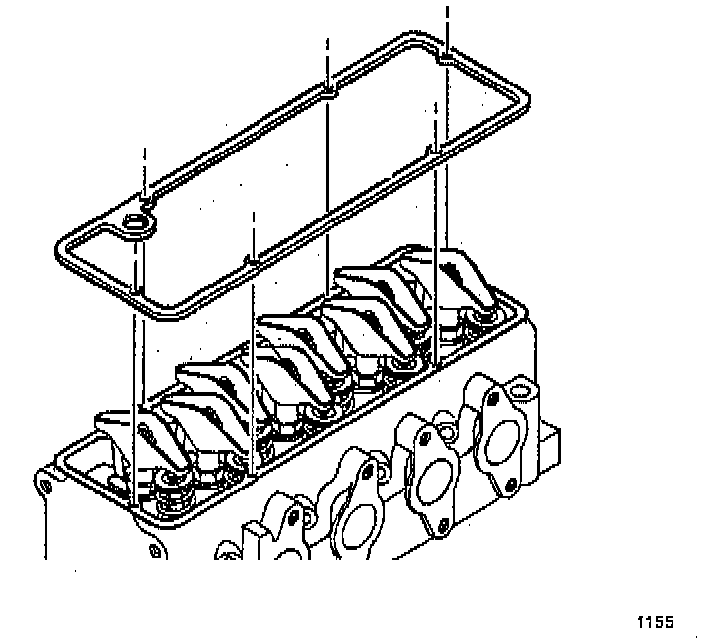

4. Remove the valve cover gasket.
