Chevrolet
>>
1997
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Lamp
>>
Tail/Stop Lamp
>>
RH
RH

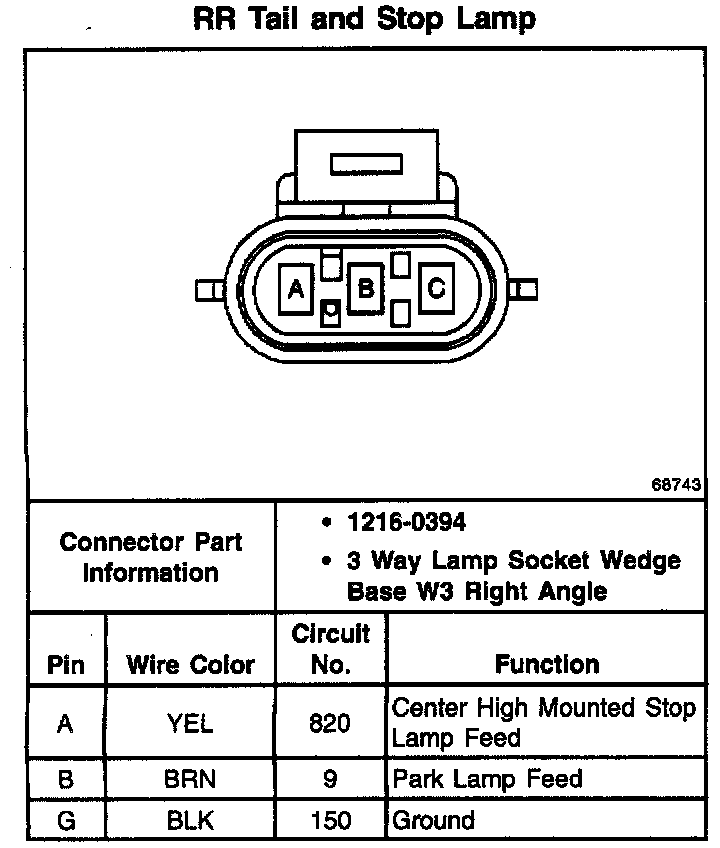

RR Tail And Stop Lamp:

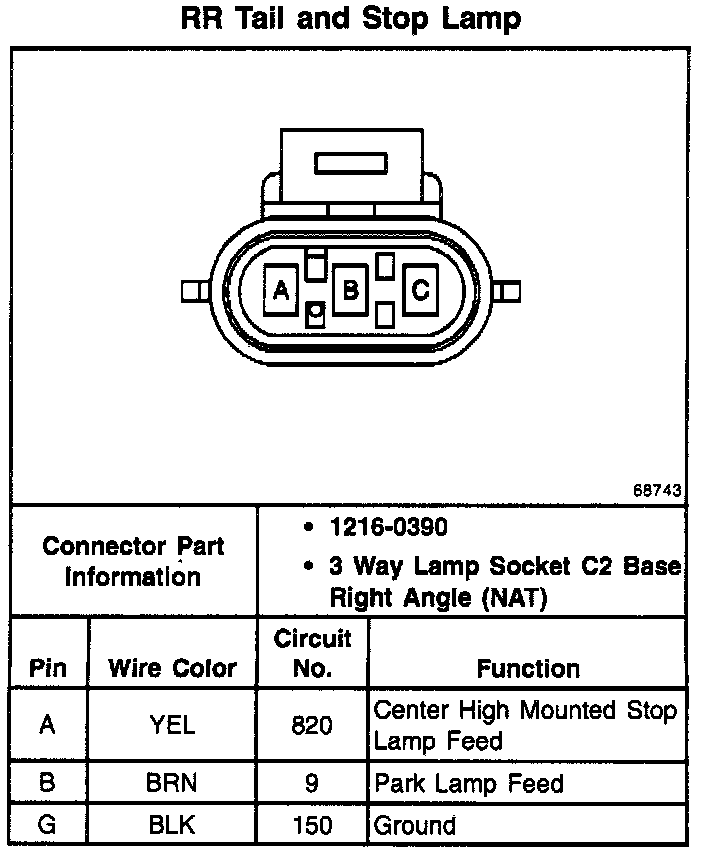

RR Tail And Stop Lamp:
