Fog/Driving Lamp Switch: Service and Repair

REMOVAL PROCEDURE

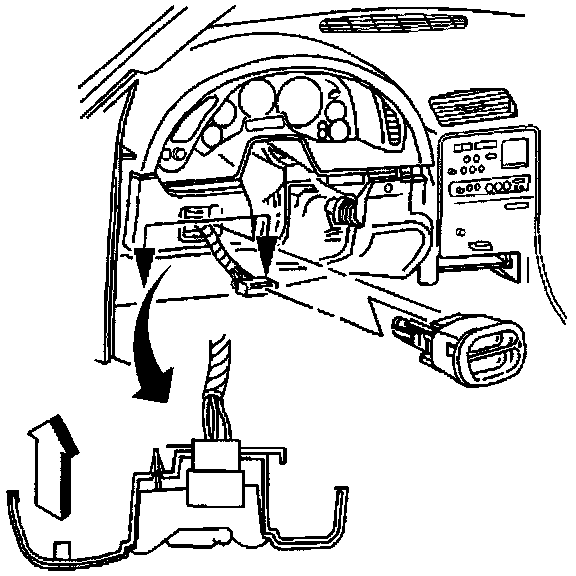

Fog Lamp Replacement: Removal Procedure:

Perform the following steps to remove the fog lamp switch:
1. Pry carefully at the lower edge of the fog lamp switch to release the locking tab.
2. Disconnect the electrical connector from the switch.
3. Remove the switch.

INSTALLATION PROCEDURE

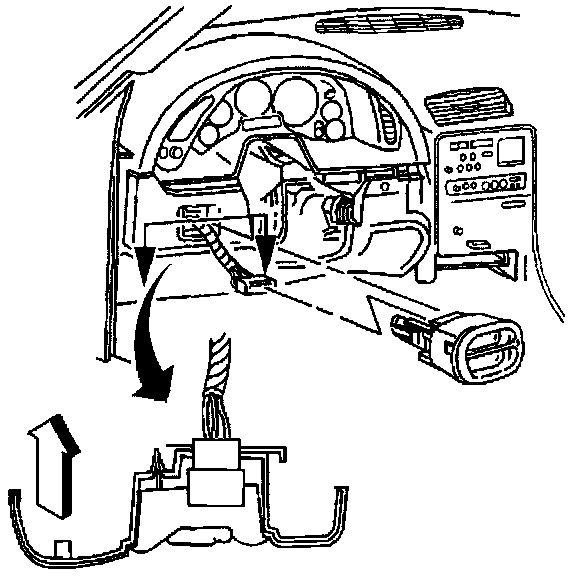

Fog Lamp Replacement: Installation Procedure:

1. Connect the electrical connector to the fog lamp switch.
2. Install the switch. Align the switch to the opening in the trim panel, then push to secure.
