Horn: Service and Repair

Horn Replacement: Removal Procedure:

Horn Replacement: Installation Procedure:

REMOVAL PROCEDURE
The horns are both mounted behind the front fascia on the RH side of the front bumper impact bar assembly.
1. Remove the RH front fascia lower closeout panel.
2. Remove the brake caliper cooling duct.

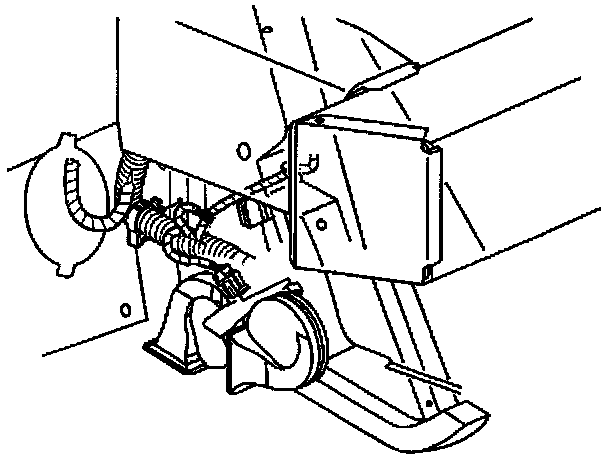

3. Disconnect the electrical connector from the horn assembly.

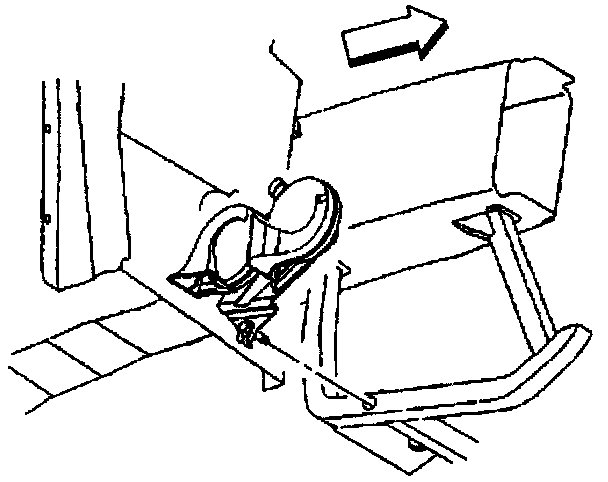

4. Remove the bolt mounting the horn assembly to the front bumper impact bar assembly.
5. Remove the horn assembly from the vehicle.

Horn Replacement: Installation Procedure:

INSTALLATION PROCEDURE

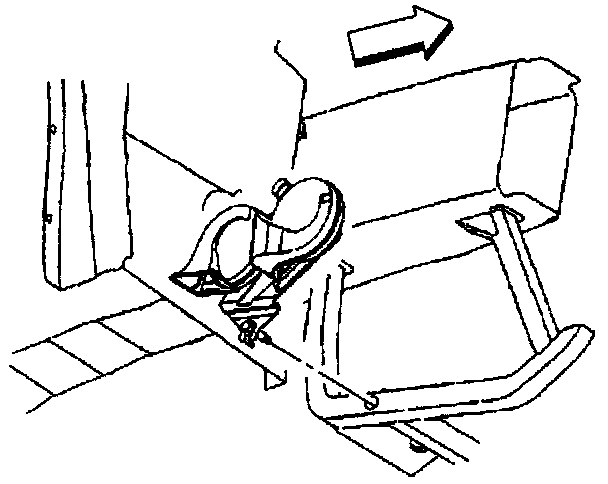

1. Install the horn assembly to the vehicle. Position the aligning tab on the horn assembly to the impact bar.
2. Install the bolt mounting the horn assembly to the front impact bar.

Tighten
Tighten the horn assembly mounting bolt to 25 N.m (18 lb ft).

NOTE: Refer to Fastener Notice in General Information.

Horn Replacement: Installation Procedure (Part 2 Of 2):

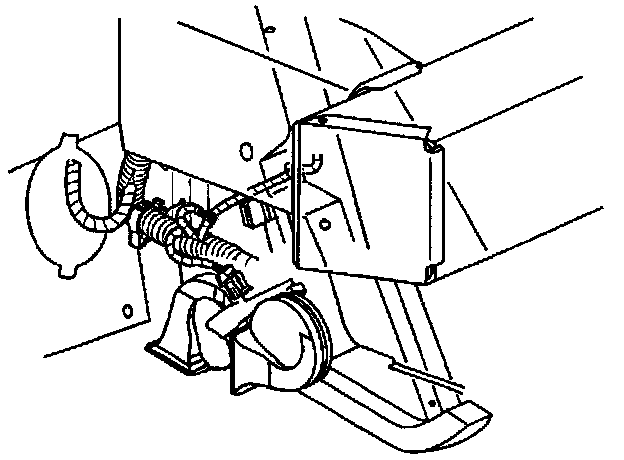

3. Connect the electrical connector to the horn assembly.
4. Install the brake caliper cooling duct.
5. Install the RH front fascia lower closeout panel.
