Data Sensors

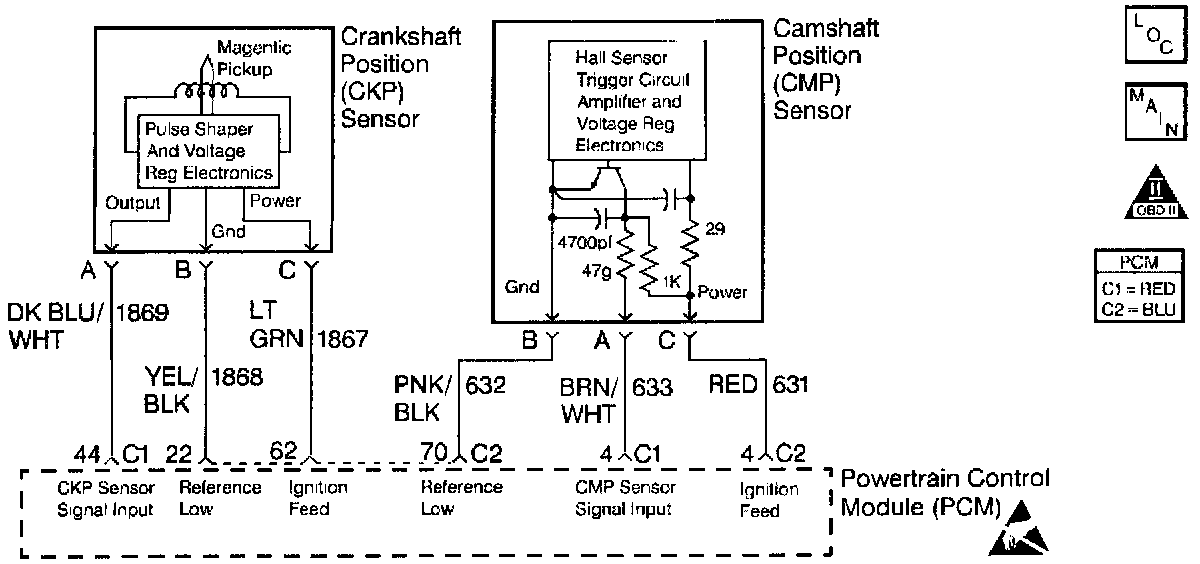

Electrical Diagram:

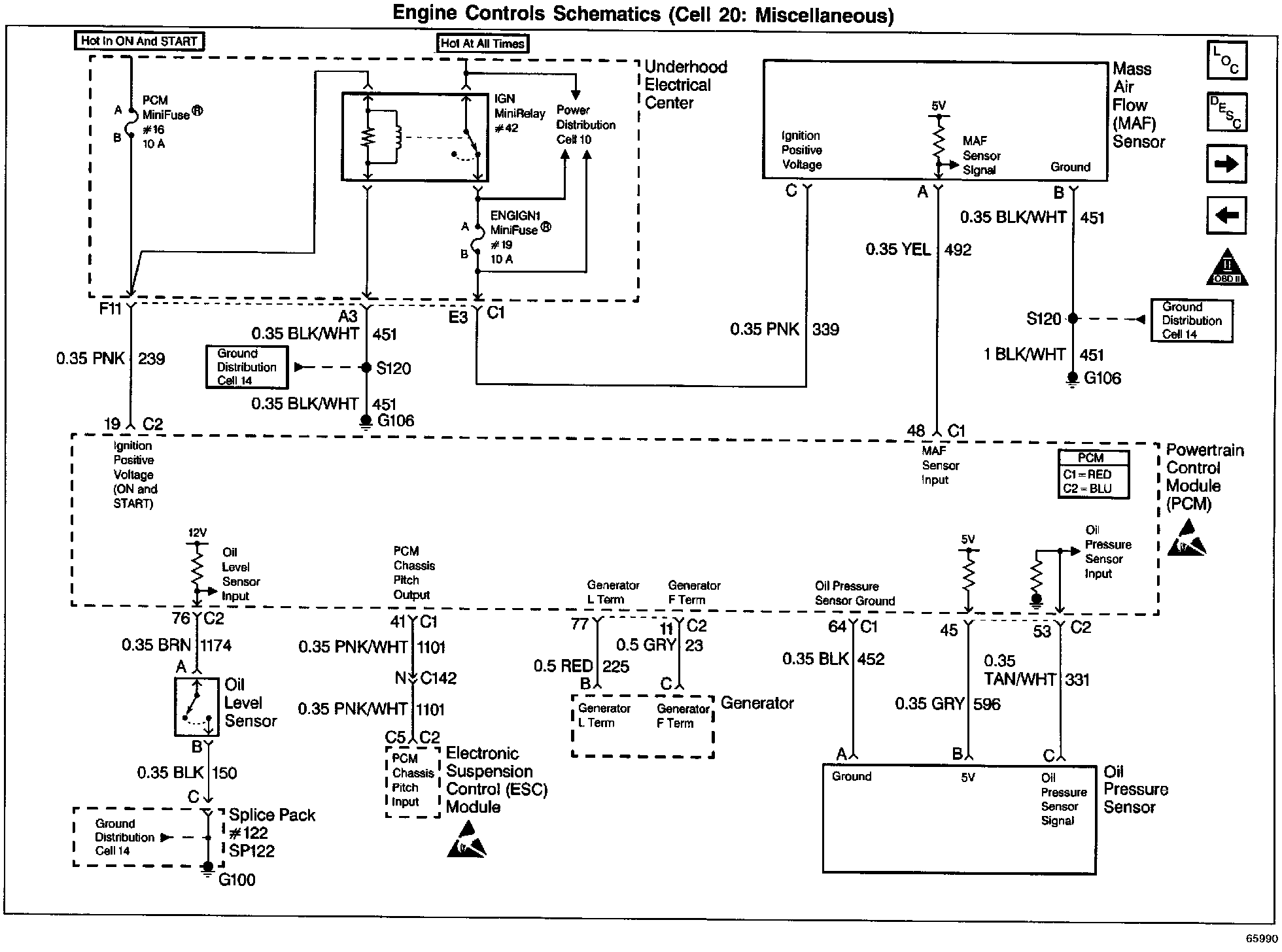

Electrical Diagram:

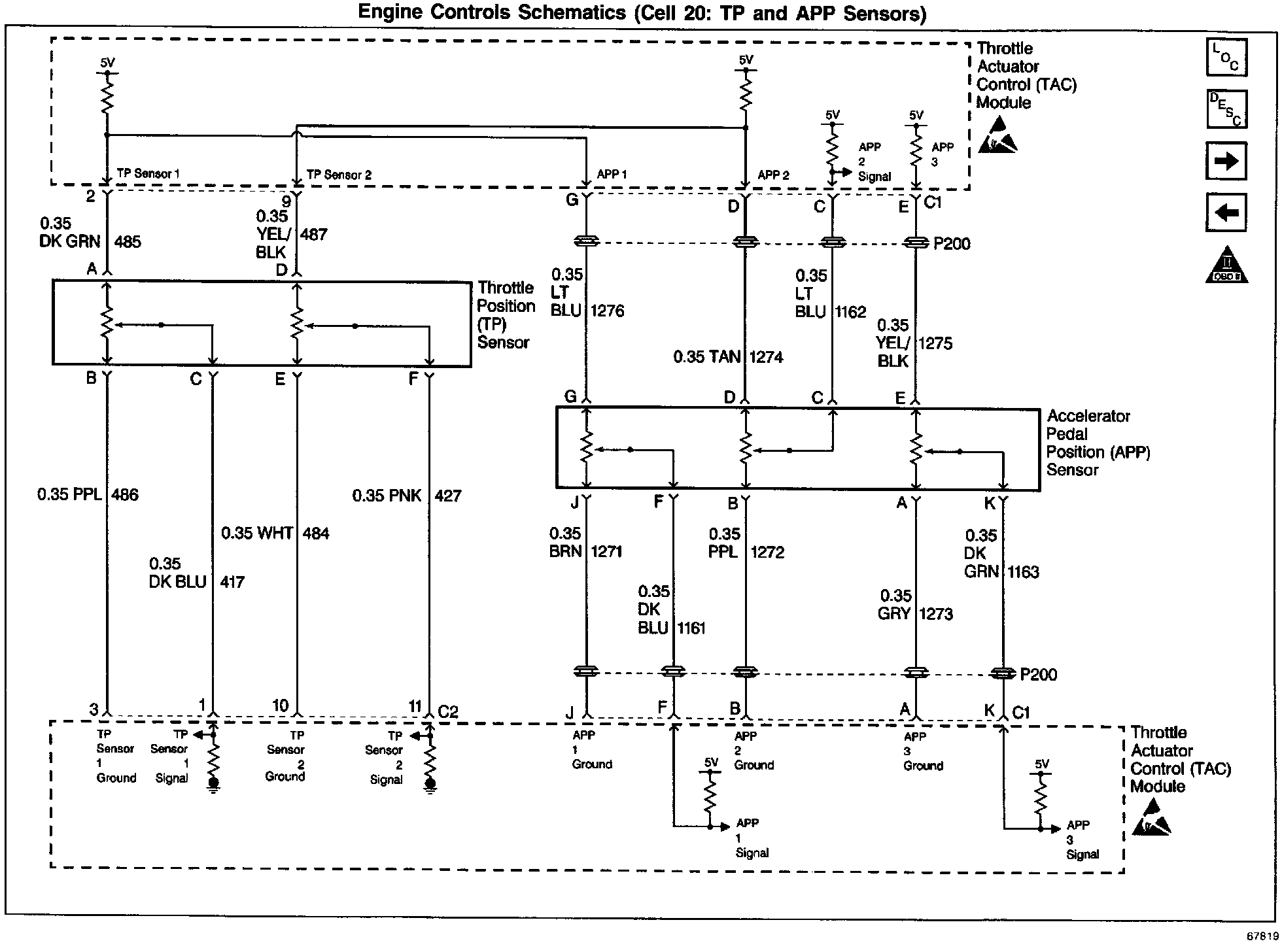

Electrical Diagram:

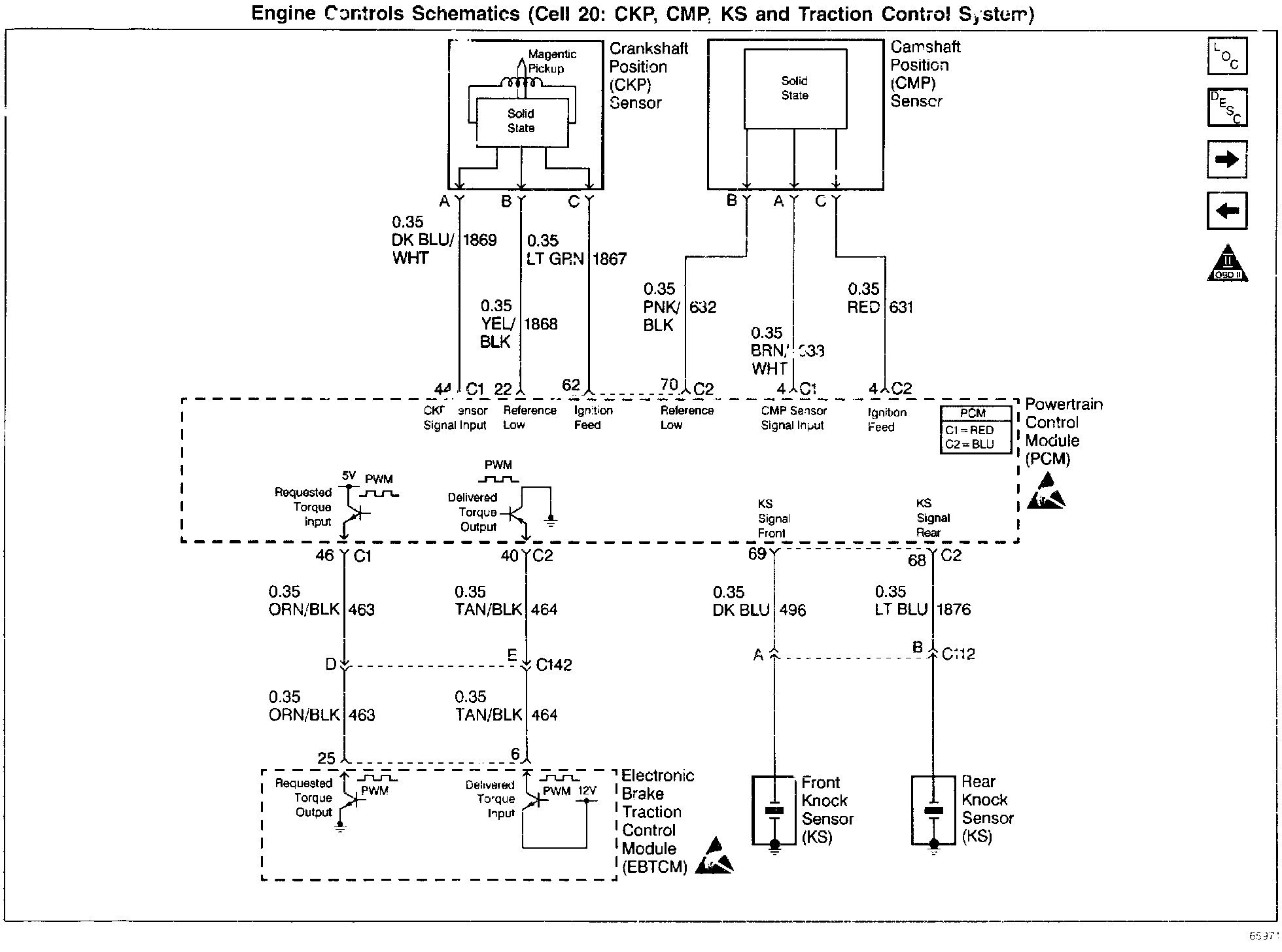

Electrical Diagram:

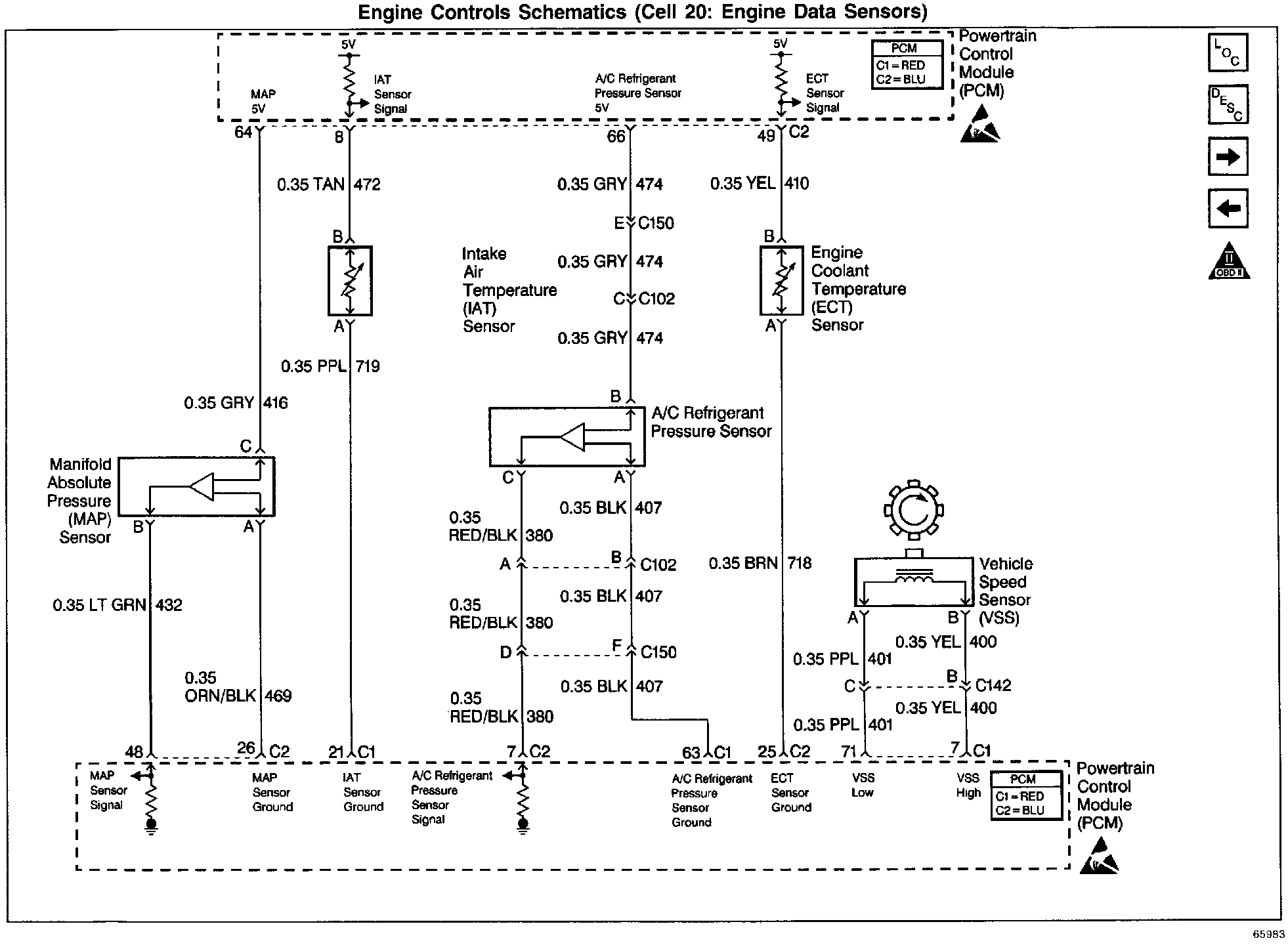

Electrical Diagram:

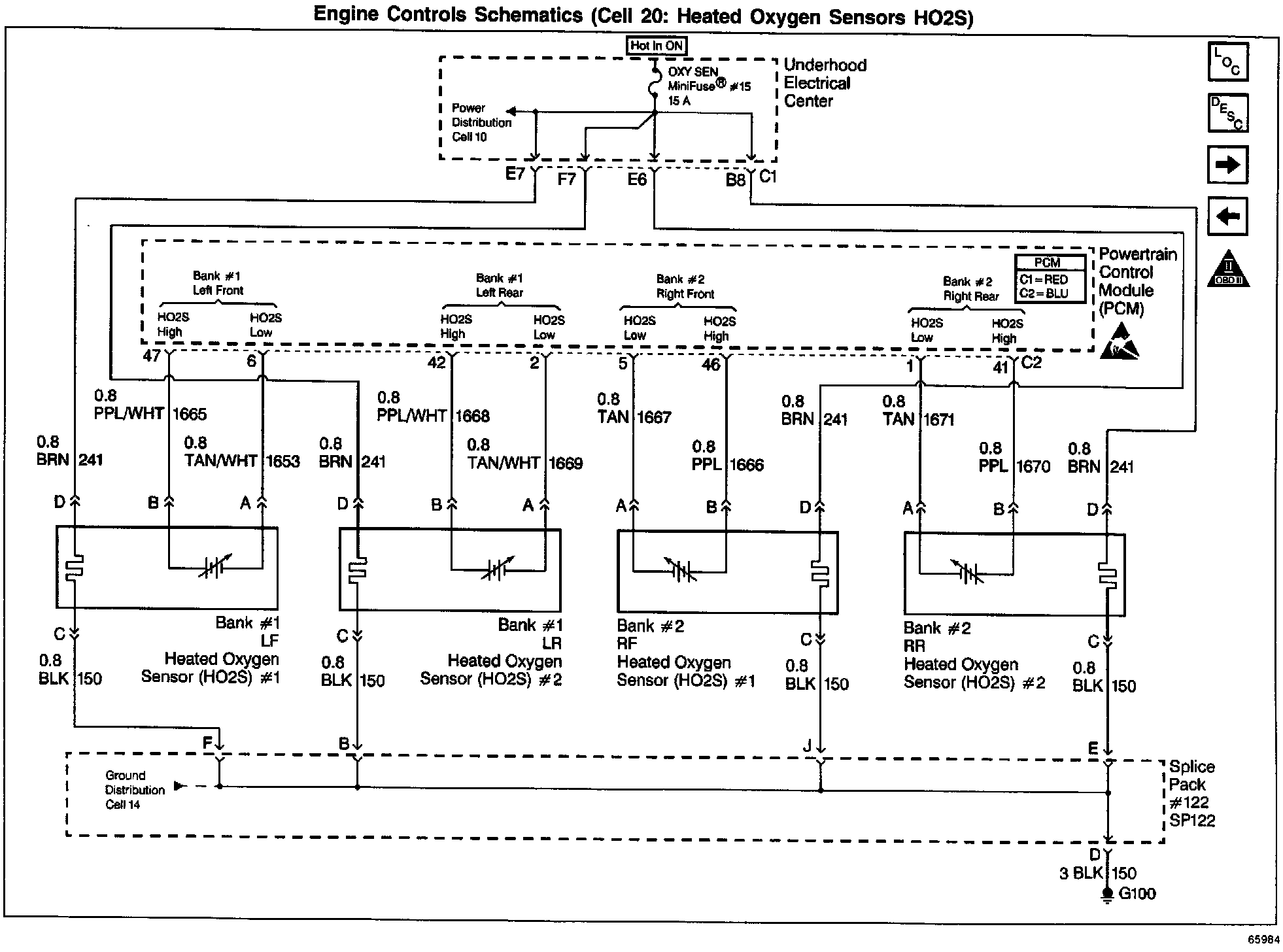

Electrical Diagram:
