Floor Shift Control Boot Replacement
REMOVAL PROCEDURE1. Remove the console.

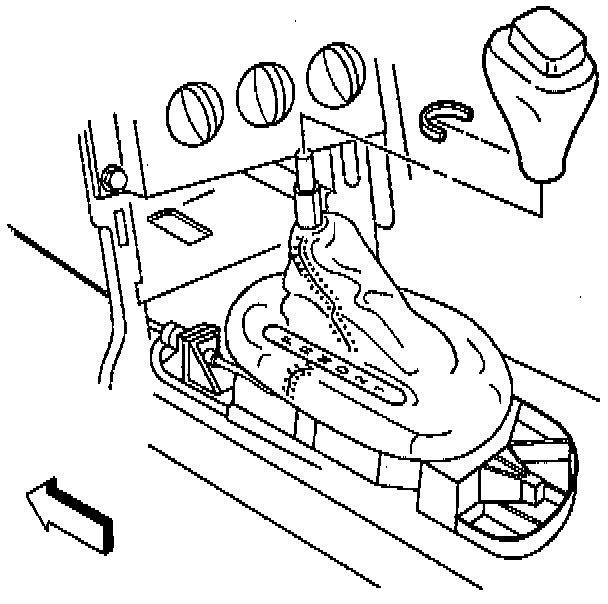

2. Remove the I/P accessory trim plate.
3. Remove the floor shift control knob.
- Using a flat-bladed screwdriver, carefully pry the staple clip from the knob.
- Remove the knob from the floor shift control.
4. Remove the floor shift control from the vehicle.
5. Remove the floor shift control boot from the floor shift control.

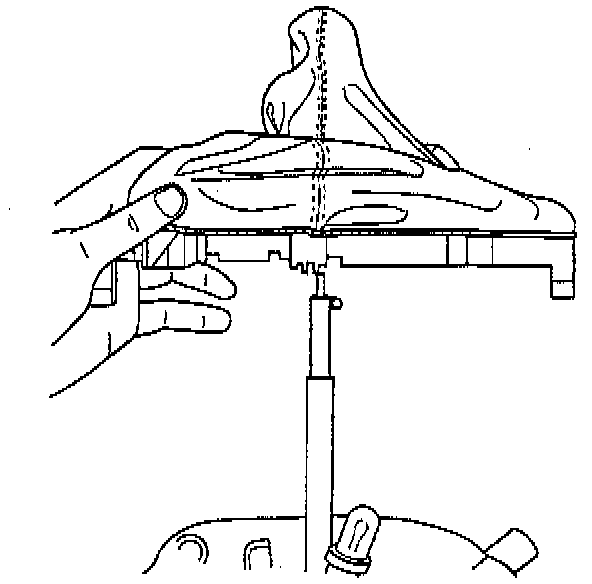

- Carefully squeeze the front and side tabs or the rear and side tabs at the same time in order to release them.
- Carefully squeeze the remaining tab in order to release it.
- Release the snap lock retainer on the LH side of the boot.
- Move the boot to the left and release the shift indicator guide pin from the shift control lever.
- Disconnect the indicator lamp socket from the boot.
- Remove the boot from the shift control.
INSTALLATION PROCEDURE
1. Install the floor shift control boot to the floor shift control.
- Position the boot onto the shifter.
- Align the shift indicator guide pin to the slot in the boot, then move boot to the right to insert the guide pin.
- Connect the shift indicator lamp socket to the boot.
- Evenly insert the tabs until the boot locks into position.
2. Install the floor shift control to the vehicle.
3. Install the shift control knob.
- Install the knob onto the shift control.
- Install the staple clip.
4. Install the I/P accessory trim plate.
5. Install the console.
