Floor Shift Control Replacement
REMOVAL PROCEDURE1. Place the vehicle on a level surface.
2. Block the wheels to keep the vehicle from moving.
3. Apply the parking brake.
4. Shift the floor shift control into PARK.
5. Turn the ignition to LOCK.
CAUTION: Disconnect the negative battery cable under the following circumstances:
- When installing an electrical unit.
- When a tool or equipment could easily come into contact with "live" exposed electrical terminals.
Failure to disconnect the negative battery terminal may result in personal injury or damage to the vehicle's components. Turn OFF the vehicle ignition, unless instructed otherwise.
6. Disconnect the negative battery cable.
7. Remove the console.
8. Remove the I/P accessory trim plate.

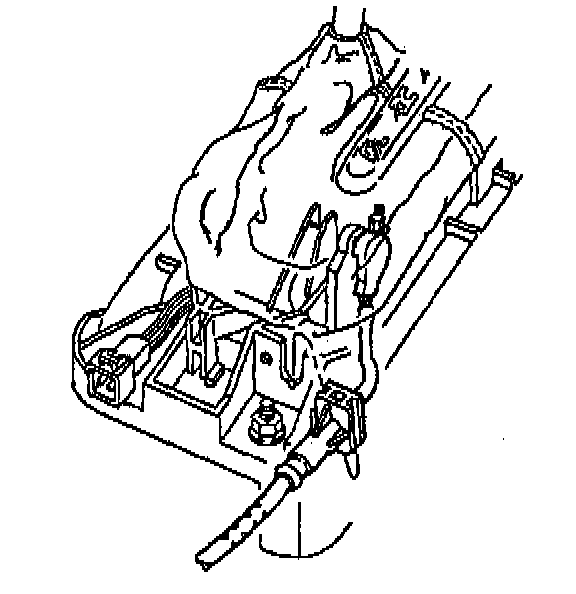

9. Disconnect the floor shift control electrical connector.
10. Disconnect the I/P wiring harness retaining clip from the shift control and reposition the harness.
11. Using a small flat bladed screwdriver or other suitable tool, release the tab retaining the park/lock cable to the slot on the shift control.
12. Lift the park/lock cable out of the shift control slot and reposition the cable.
13. Grasp the cable end and pull rearward in order to unlock the cable from the shifter pivot arm stud, then reposition the cable.
14. Remove the nuts retaining the shift control to the driveline tunnel.
15. Shift the floor shift control into FIRST. This will lengthen the shift control cable and provide slightly more movement.
Important: DO NOT lift the floor shift control any more than necessary, the shift control cable is extremely rigid.
16. Slowly lift the floor shift control just enough to access the shift control cable end. BE SURE the floor shift control remains in FIRST.

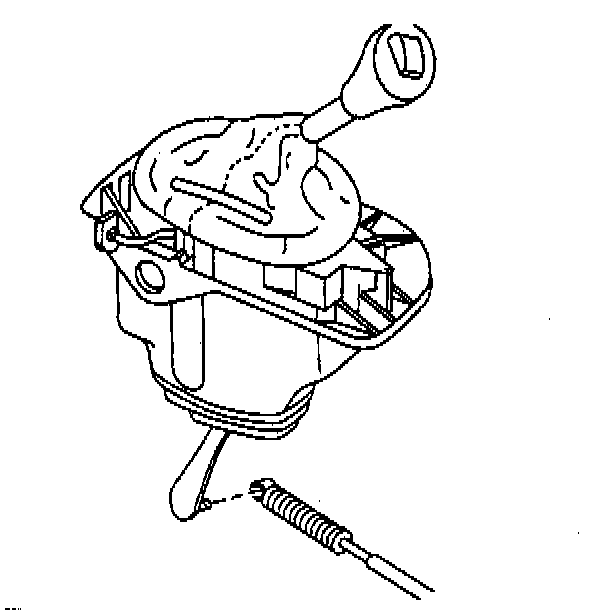

17. Unsnap the shift control cable end clip from the floor shift control arm stud. Use care to not suddenly jerk either the cable or the floor shift control.
18. Remove the floor shift control.
INSTALLATION PROCEDURE
1. Shift the floor shift control into FIRST.
Important: Be sure to position the floor shift control as low as possible, the shift control cable is extremely rigid.
2. Lower the floor shift control into position. BE SURE the floor shift control remains in FIRST.
3. Align the shift control cable end to the floor shift control arm stud.
4. Press to snap and secure the shift control cable end clip to the floor shift control arm stud.

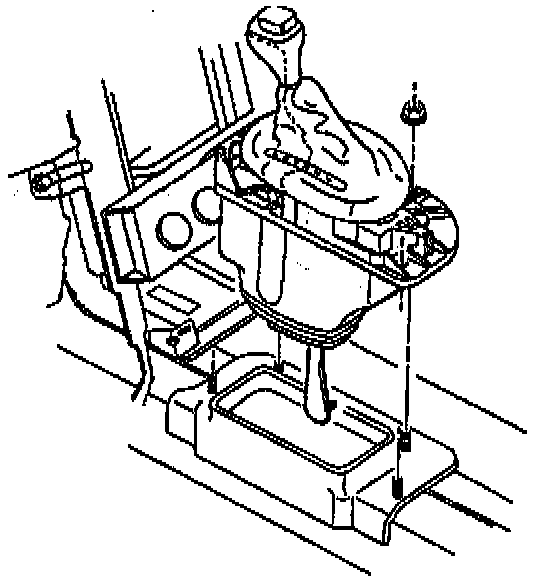

5. Seat the floor shift control to the driveline tunnel.
6. Install the nuts retaining the floor shift control to the driveline tunnel.
- Tighten the floor shift control retaining nuts to 10 Nm (89 inch lbs.).
NOTICE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
7. Shift the floor shift control into PARK.

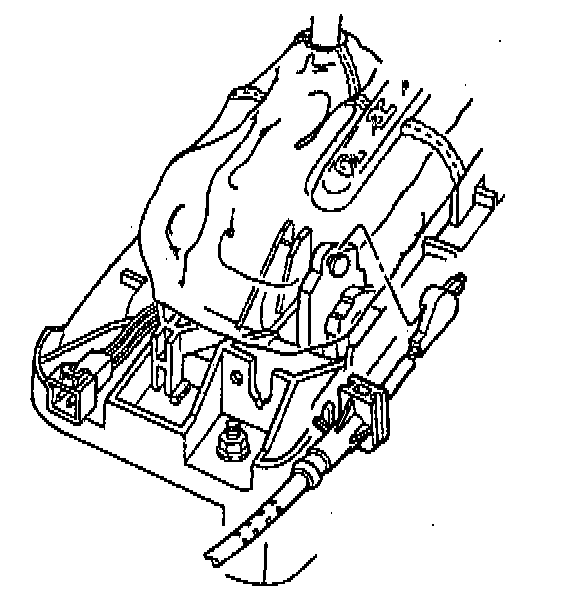

8. Install the park/lock cable to the floor shift control pivot arm stud. Align the cable onto the arm stud then pull forward to lock.
9. Insert the park/lock cable into the slot on the floor shift control. Be sure the cable retaining tab locks into place.
10. Connect the I/P wiring harness retaining clip to the shift control.
11. Connect the shift control electrical connector.
12. Install the I/P accessory trim plate.
13. Install the console.
14. Connect the negative battery cable.
- Tighten the negative battery cable bolt to 15 Nm (11 ft. lbs.).
15. Unblock the wheels.
16. Release the parking brake.
