Reverse Shift Fork Removal

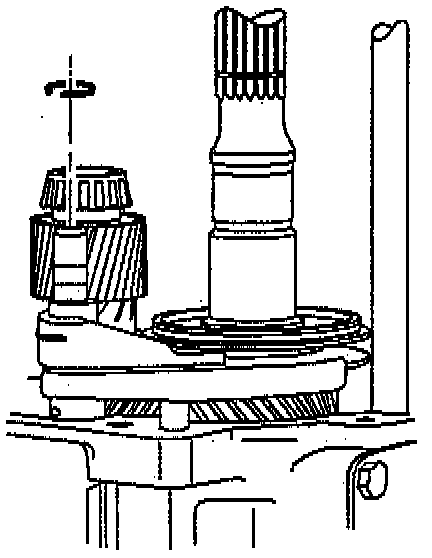

1. Remove the reverse synchronizer retainer ring.





2. Remove the reverse shift fork retainer ring. Discard the retainer ring.

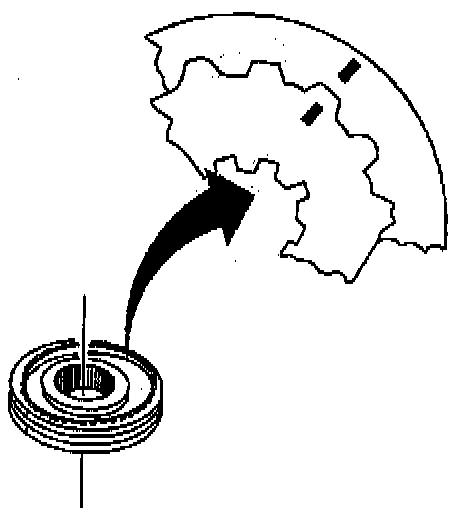

3. Scribe a mark on the synchronizer hub and on the sleeve. This will help you to reinstall the parts in the same position.

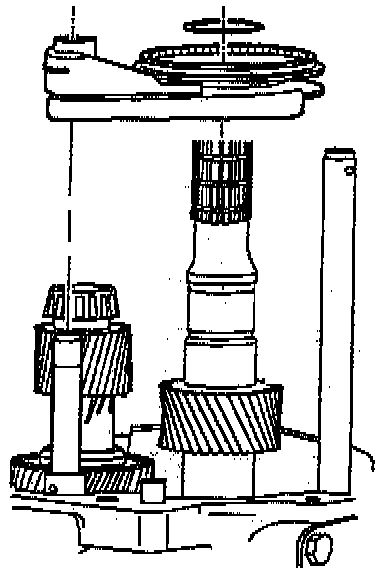

4. Remove the following parts:
a. The thrust
b. The reverse synchronizer assembly and the shift fork
