Countershaft Disassemble

^ Tools Required:
- J 22912-01 Split Plate
- J 39473 Press Adapter
- J 39511 Split Plate
- J 39547 Press Adapter
- Hydraulic Press
- Or Equivalent

Important: Do not replace tapered bearings unless inspection shows bearing damage.





1. Remove the small tapered bearing. Use the J 22912-01 with the J 39473 and a hydraulic press.
2. Discard the small tapered bearing.

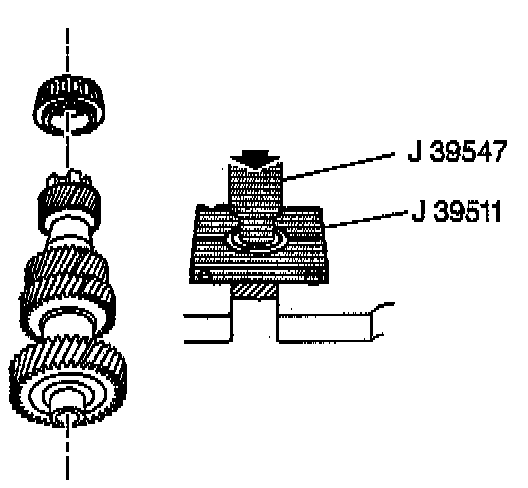

3. Remove the large tapered bearing. Use the J 39511 with the J 39547 and a hydraulic press.
4. Discard the large tapered bearing.
