Water Outlet Installation

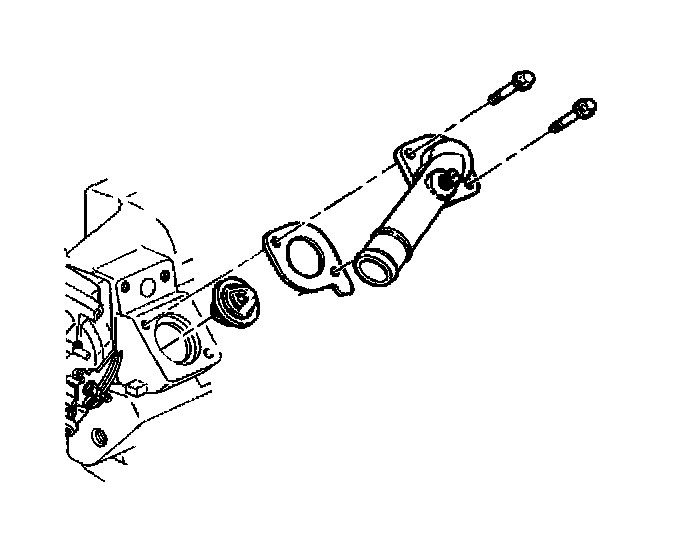

WATER OUTLET INSTALLATION
1. Install the thermostat.
2. Install the water outlet gasket.





3. Install the water outlet.

NOTICE: Refer to Fastener Notice in Service Precautions.

4. Install the water outlet bolts.
^ Tighten the water outlet bolts to 27 Nm (20 ft. lbs.).
