Installation Procedure

Description:

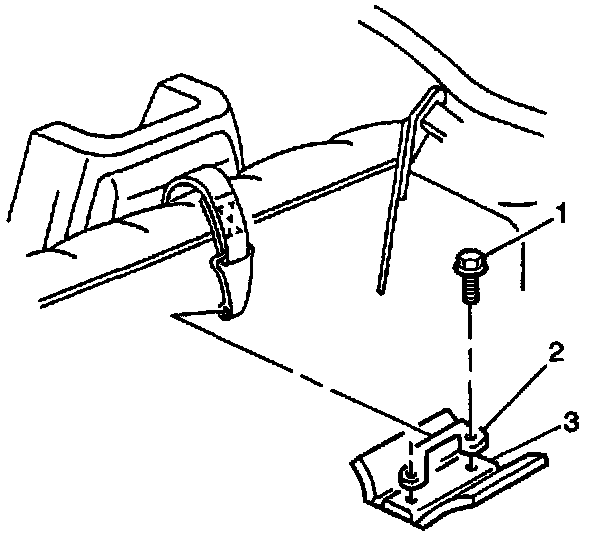

1. Connect the anchor bracket (3) to the anchor bracket mounting plate.

NOTICE: Refer to Fastener Notice in Service Precautions.

Important: Do not use a nut driver to tighten this hardware, or the fasteners will not be properly seated.

2. Install the bolts/screws (1).
Tighten the bolts/screws (1) until the bolts are fully seated. Do not strip the bolts.
