Home >> Chevrolet >> 1998 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Center Mounted Brake Lamp >> High Mounted Stop Lamp Assembly >> C1

C1

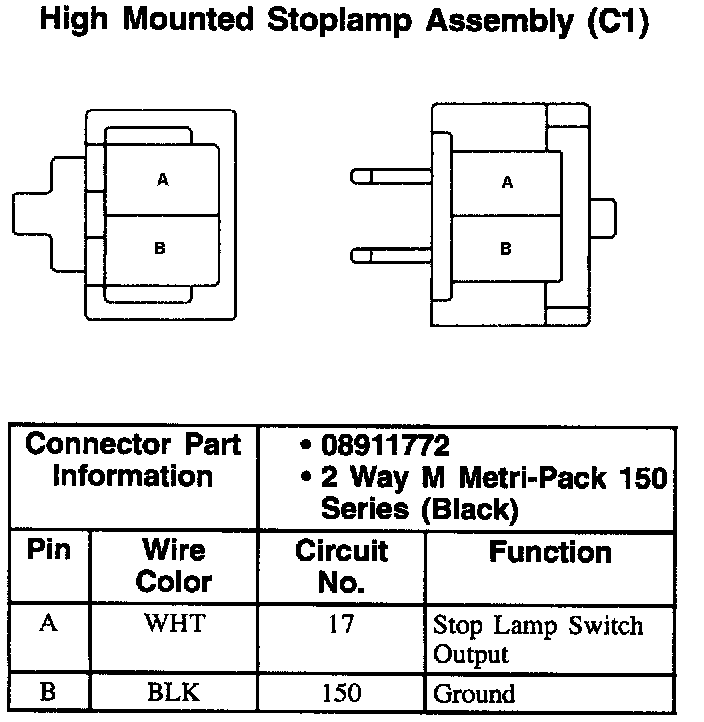

High Mounted Stoplamp Assembly (C1):
