Accelerator Cable Bracket

Description:

REMOVAL PROCEDURE
1. Remove the accelerator, cruise and transmission cables, (If so equipped).

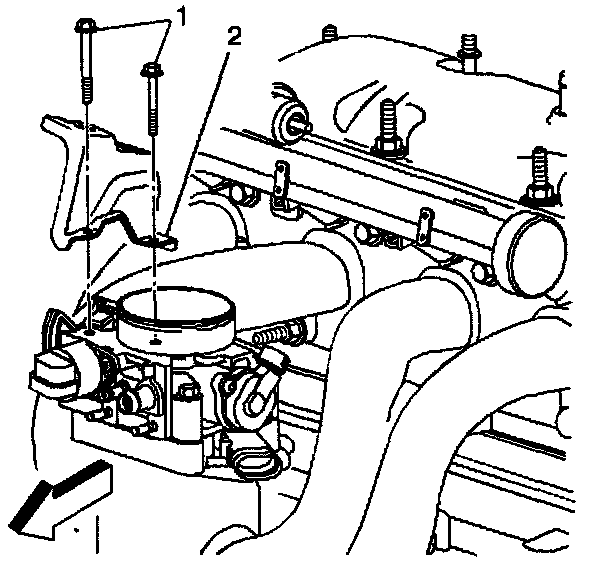

2. Remove the accelerator cable bracket attaching bolts (1) and the accelerator cable bracket (2).

INSTALLATION PROCEDURE
1. Install the accelerator cable bracket (2) with attaching bolts (1).

NOTICE: Align the accelerator bracket with the accelerator cam in order to prevent cable wear which could cause the cable to break. Tighten bolts to 25 Nm (18 lb ft).

2. Install the accelerator cable, cruise and transmission cables, (If so equipped).
