Installation Procedure

Description:

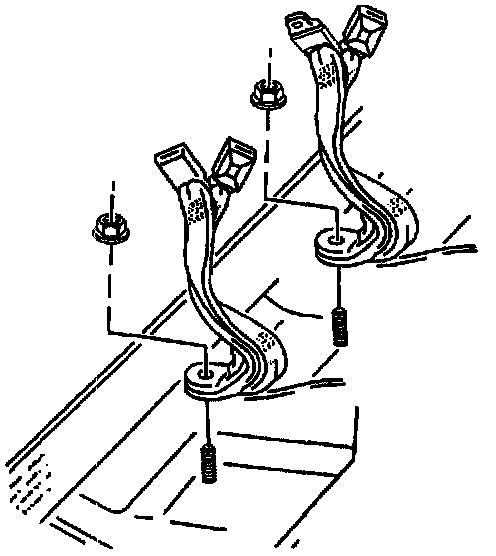

1. Install the rear seat center belt.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the rear seat center belt nut.

Tighten
Tighten the rear seat center belt nut to 42 N.m (31 lb. ft).

3. Install the rear seat cushion. Refer to Seats and Carpet.
