Steering Wheel

^ Tool Required:
- J 1859-A Steering Wheel Puller
- Or Equivalent

REMOVE OR DISCONNECT
1. Disable the Supplemental Inflatable Restraint (SIR) system.
2. Inflator module and horn connection.
3. Nut.
4. Steering wheel using J 1859-A.

INSTALL OR CONNECT

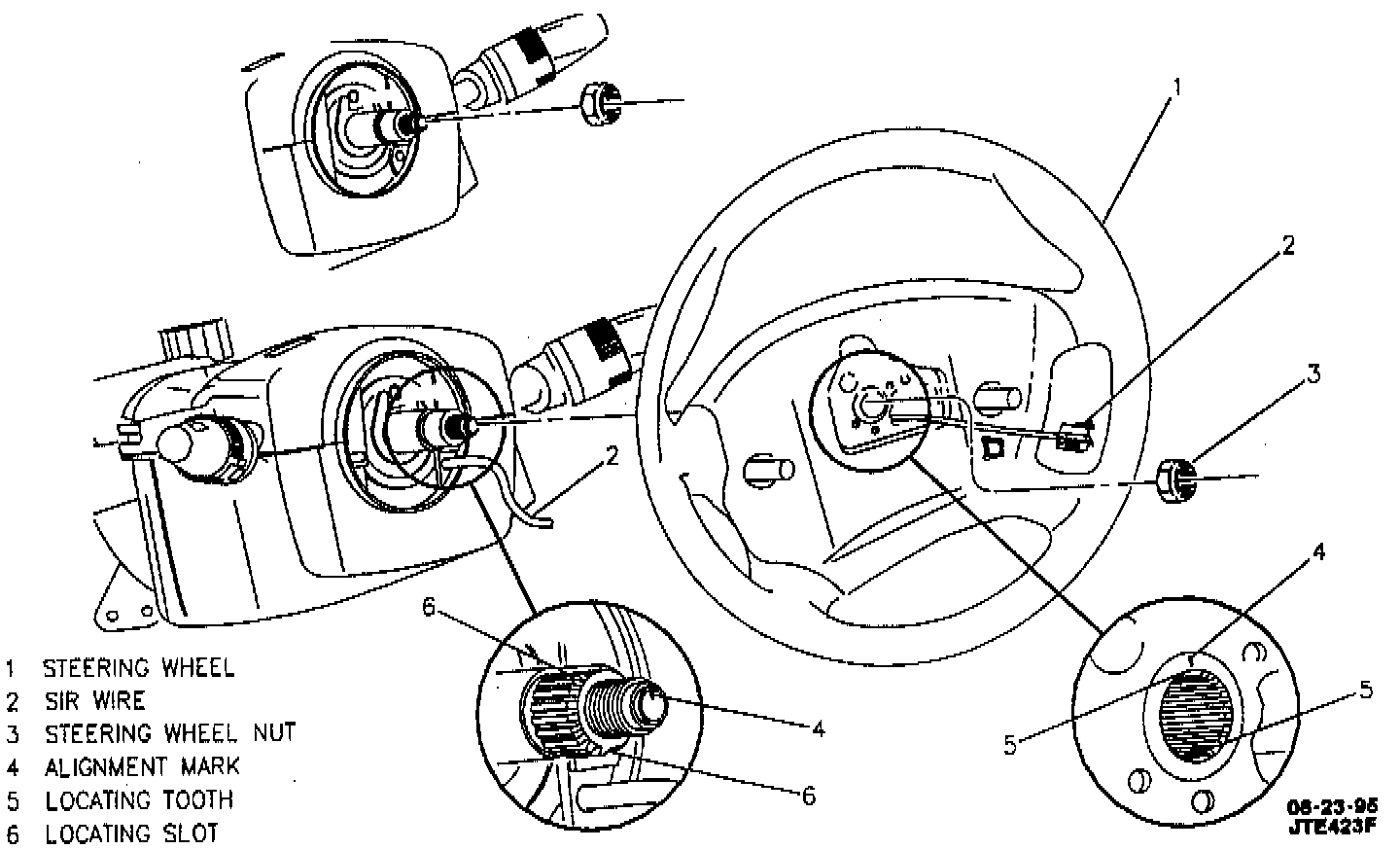

1. Align mark on steering wheel with mark on shaft, then install steering wheel.
2. Nut.
^ Tighten steering wheel nut to 41 Nm (30 lb ft).
3. Horn connection and Inflator module.
4. Enable the SIR system.
